View Issue Details

IDProjectCategoryView StatusLast Update
0000579OpenFOAM[All Projects] Bugpublic2012-08-03 10:42
Reporteruser219Assigned Touser2
PrioritynormalSeveritycrashReproducibilityalways
Status resolvedResolutionno change required
PlatformLinuxOSOpenSuseOS Version11.3
Product Version
Fixed in Version
Summary0000579: LTSReactingParcelFoam crashes running in parallel (with MPI)
Descriptionboth tutorials(verticalChannel and counterFlowFlame2D) crashes, running in parallel, with LTSReactingParcelFoam
Steps To Reproducecopy the decomposeParDict from
/OpenFOAM/OpenFOAM-2.1.x/tutorials/lagrangian/coalChemistryFoam/simplifiedSiwek/system/
to
/OpenFOAM/OpenFOAM-2.1.x/tutorials/lagrangian/LTSReactingParcelFoam/verticalChannel/system/

then blockMesh and mpirun
TagsNo tags attached.

Activities

user2

2012-08-01 13:26

  ~0001528

What error message(s) do you receive? running locally on an OpenSUSE 11.3 system both cases worked well.

user219

2012-08-01 14:19

  ~0001529

I receive this message:

Creating multi-variate interpolation scheme

Selecting radiationModel none

Constructing reacting cloud
[1]
[1]
[1] --> FOAM FATAL ERROR:
[1] read failed
[1]
[1] From function UIPstream::UIPstream(const commsTypes, const int, DynamicList<char>&, streamFormat, versionNumber)
[1] in file UIPread.C at line 114.
[1]
FOAM parallel run aborting
Creating sources

Creating field source list from sourcesProperties

Creating porous zones


Starting time loop

[1]
Time = 1

Time scales min/max:
[1] #0 Foam::error: PrintStack(Foam::Ostream&) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libOpenFOAM.so"
[1] #1 Foam::error::abort() in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libOpenFOAM.so"
[1] #2 Foam::UIPstream::UIPstream(Foam::UPstream::commsTypes, int, Foam::DynamicList<char, 0u, 2u, 1u>&, int&, int, bool, Foam::IOstream::streamFormat, Foam::IOstream::versionNumber) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/openmpi-1.5.3/libPstream.so"
[1] #3 Foam::IPstream::IPstream(Foam::UPstream::commsTypes, int, int, int, Foam::IOstream::streamFormat, Foam::IOstream::versionNumber) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libOpenFOAM.so"
[1] #4 Foam::IOdictionary::readFile(bool) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libOpenFOAM.so"
[1] #5 Foam::IOdictionary::IOdictionary(Foam::IOobject const&) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libOpenFOAM.so"
[1] #6 Foam::IObasicSourceList::IObasicSourceList(Foam::fvMesh const&) in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/lib/libfiniteVolume.so"
[1] #7
[1] in "/home/usr/OpenFOAM/OpenFOAM-2.1.x/platforms/linux64GccDPOpt/bin/LTSReactingParcelFoam"
[1] #8 __libc_start_main in "/lib64/libc.so.6"
[1] #9
[1] at /usr/src/packages/BUILD/glibc-2.11.2/csu/../sysdeps/x86_64/elf/start.S:116
--------------------------------------------------------------------------
MPI_ABORT was invoked on rank 1 in communicator MPI_COMM_WORLD
with errorcode 1.

NOTE: invoking MPI_ABORT causes Open MPI to kill all MPI processes.
You may or may not see output from other processes, depending on
exactly when Open MPI kills them.
--------------------------------------------------------------------------
--------------------------------------------------------------------------
mpirun has exited due to process rank 1 with PID 12051 on
node linux-62ig exiting improperly. There are two reasons this could occur:

1. this process did not call "init" before exiting, but others in
the job did. This can cause a job to hang indefinitely while it waits
for all processes to call "init". By rule, if one process calls "init",
then ALL processes must call "init" prior to termination.

2. this process called "init", but exited without calling "finalize".
By rule, all processes that call "init" MUST call "finalize" prior to
exiting or it will be considered an "abnormal termination"

This may have caused other processes in the application to be
terminated by signals sent by mpirun (as reported here).
--------------------------------------------------------------------------

user2

2012-08-01 16:02

  ~0001531

in your etc/controlDict, what settings are you using for fileModificationChecking and commsType? e.g. I'm using

    fileModificationChecking timeStampMaster;
    commsType nonBlocking;

user219

2012-08-02 07:12

  ~0001534

Last edited: 2012-08-02 10:13

View 2 revisions

the same as you are

fileModificationChecking timeStampMaster;//inotify;timeStamp;inotifyMaster;
commsType nonBlocking; //scheduled; //blocking;

wyldckat

2012-08-02 22:57

updater   ~0001545

Last edited: 2012-08-02 23:07

View 3 revisions

@GenaRisch: which commit are you using? Run "git log -1" to check which one.
Also try the latest git commit of OpenFOAM 2.1.x. Additionally, check the attached prepared case, based on your instructions, just to make 100% certain the same test is being performed.

@andy: Attached is both said prepared case for parallel execution, using 2 sub-domains and following the "Steps To Reproduce", as well as the logs (serial_and_parallel_logs.tar.gz) for the serial and parallel executions. There is a significant difference in the minimum value for the temperature, seen in the logs, possibly related to the original issue.

(edit: forgot to point the temperatures) On the last iteration:
Serial - T gas min/max = 389.555623, 573
Parallel - T gas min/max = 337.0483616, 573


Specs I used:
$ git log -1:
commit 334ec14f742f95b1198bc0de318d625fc724b5e7
Author: Henry <Henry>
Date: Thu Aug 2 14:13:23 2012 +0100

Test system: Ubuntu 11.10 x86_64, Gcc 4.6.1.

wyldckat

2012-08-02 22:57

updater

verticalChannelPar.tar.gz (7,354 bytes)

wyldckat

2012-08-02 22:57

updater

serial_and_parallel_logs.tar.gz (177,282 bytes)

wyldckat

2012-08-02 23:04

updater   ~0001546

By the way, I remembered now seeing a commit that might be the one that fixed the original reported issue, namely commit 7d703d585daf11438fbc4ad3bae01199675e7f78: https://github.com/OpenFOAM/OpenFOAM-2.1.x/commit/7d703d585daf11438fbc4ad3bae01199675e7f78

user219

2012-08-03 08:47

  ~0001547

on the local workstation i use

commit 223b594ad0fff19dcd066fd9e7ede4200e1e95ca
Author: sergio <sergio>
Date: Tue May 8 17:27:57 2012 +0100

but this error occurs on other machines, with the newest commit at the date I submitted, too

now with the changes in dictionaryIO.C and UIPread.C parallel running works

Thanks

user219

2012-08-03 09:30



T gas min.png (56,389 bytes)
T gas min.png (56,389 bytes)

user219

2012-08-03 09:30

  ~0001549

Last edited: 2012-08-03 09:34

View 2 revisions

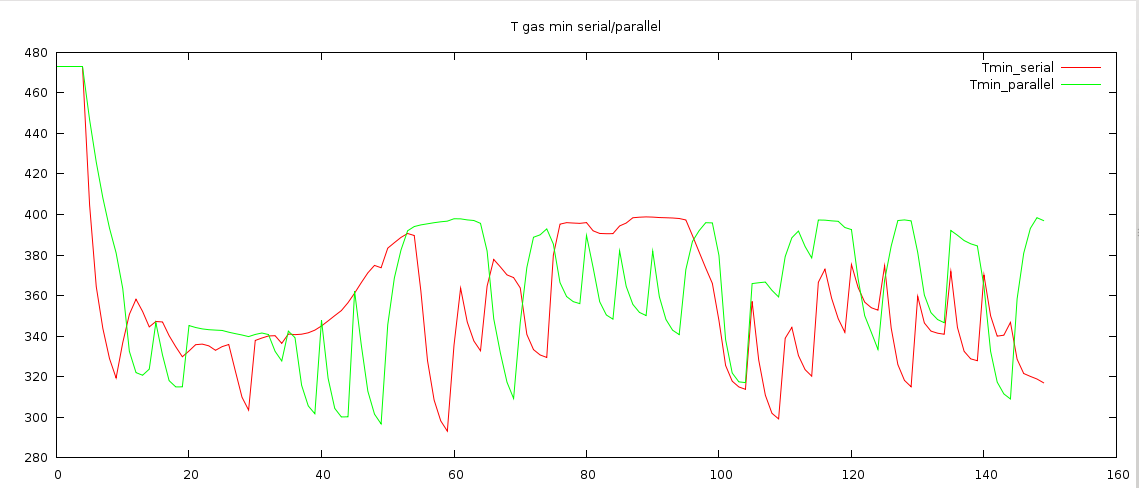

@wyldckat

i think it is just an unlucky "Time" you compared
as you can see in the attached plot both parallel and serial T gas min are approximately in the same range

user2

2012-08-03 10:42

  ~0001550

thanks for the responses
