View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0004216 | OpenFOAM | Bug | public | 2025-02-21 14:32 | 2025-02-21 14:32 |
| Reporter | agustinvo | Assigned To | |||
| Priority | normal | Severity | minor | Reproducibility | always |
| Status | new | Resolution | open | ||
| Platform | GNU/Linux | OS | Other | OS Version | (please specify) |
| Product Version | 12 | ||||
| Summary | 0004216: Wrong edgeGrading when using BSpline | ||||

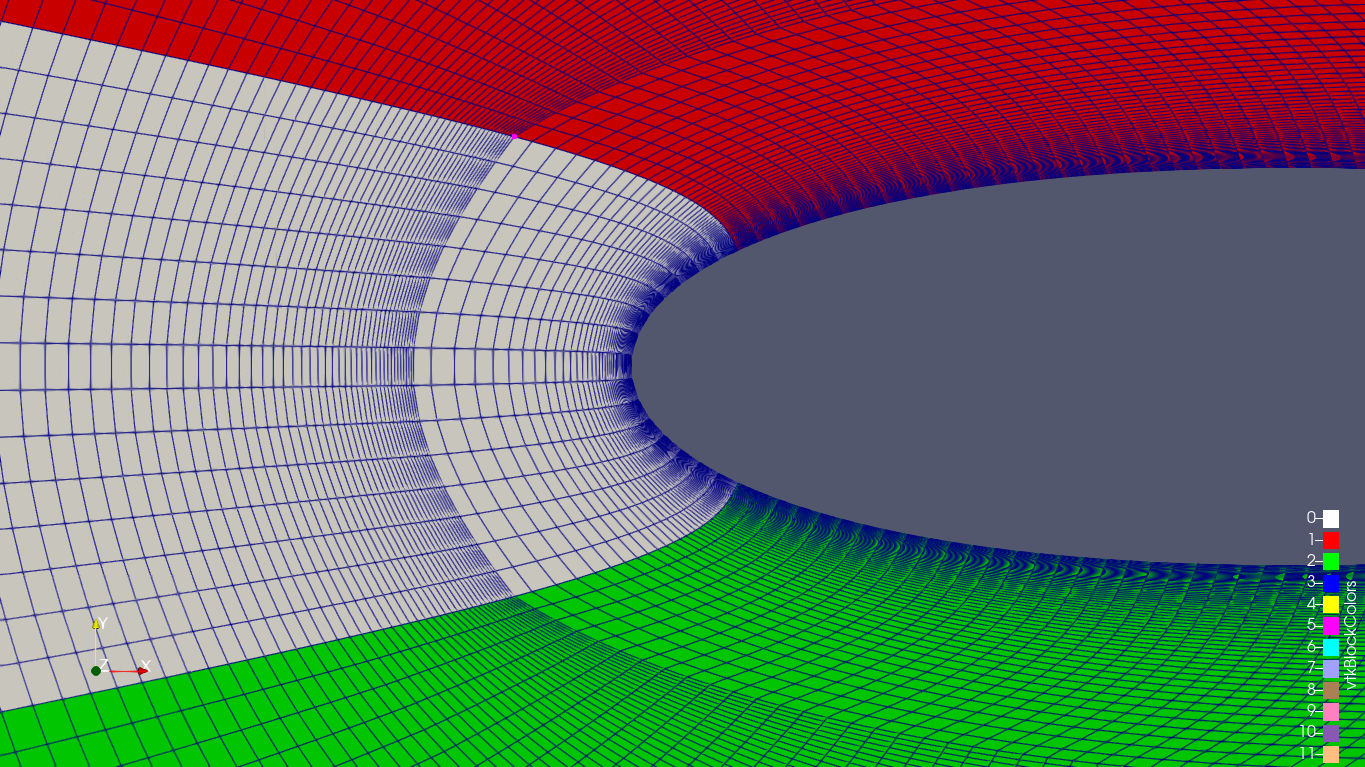

| Description | I am trying to use the BSpline edge to create a block around an aerofoil. My test case is presented in the attached file. I am using as well an edgeGrading so each edge can have its own grading. When I run blockMesh, the cell distribution is wrong. I can observe, from the aerofoil towards the outer circle, an increasing ratio until a certain point, where the growing is stopped and it restarts again. I attach as well two images to illustrate my situation. The gradings to take care are: - grading_Y_le_extra - grading_Y_le_intra - grading_Y_te_extra - grading_Y_te_intra | ||||
| Steps To Reproduce | Unzip the test case Run blockMesh Visualize in paraFoam | ||||
| Additional Information | - Even with a grading of 1 this error persists. - I found the problem in both spline and BSpline methods. - I have no problems with the grading if both vertices are connected through a line. | ||||
| Tags | No tags attached. | ||||
