Summary | 0004191: non-orthogonality after refineMesh | ||||

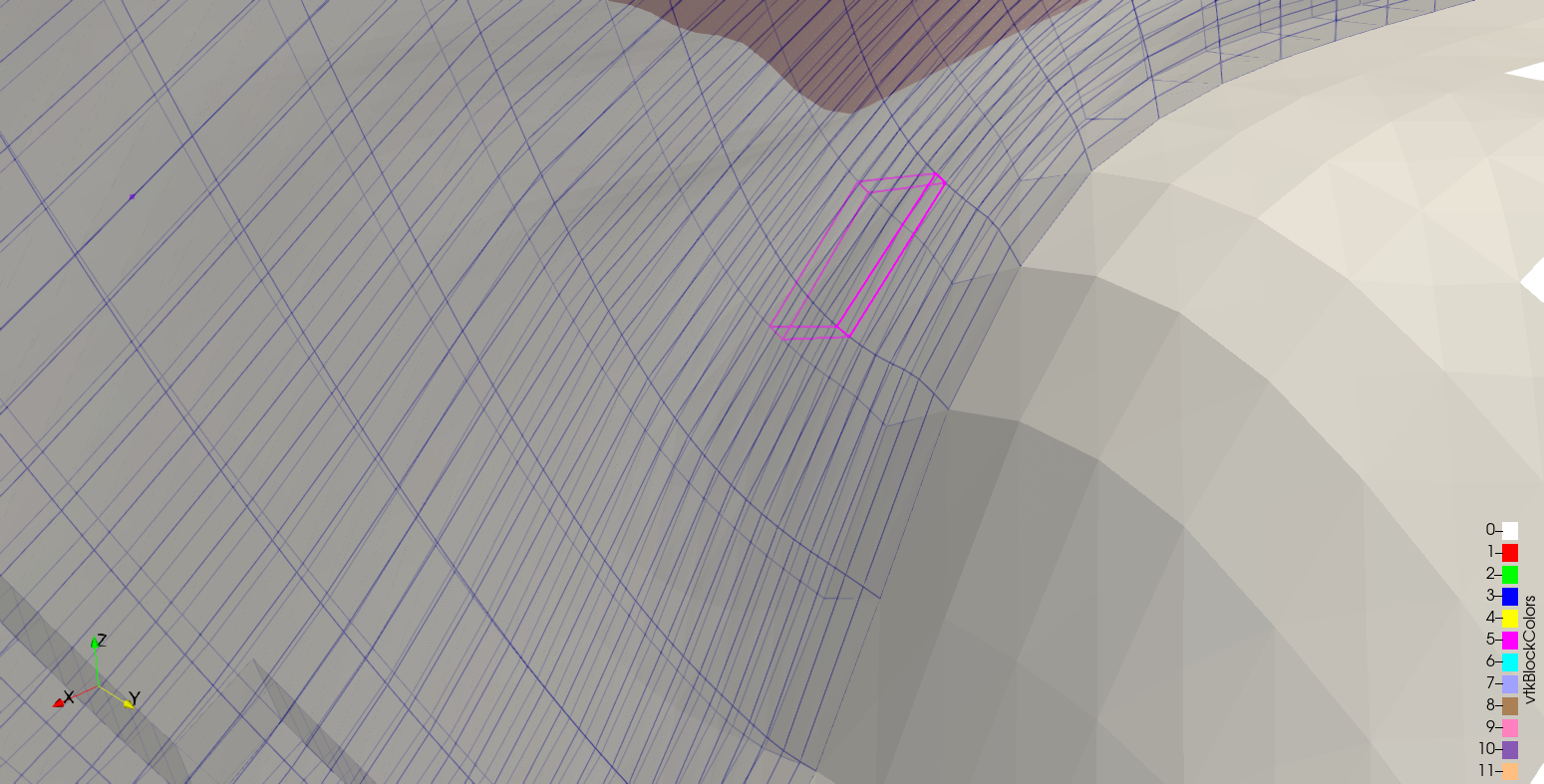

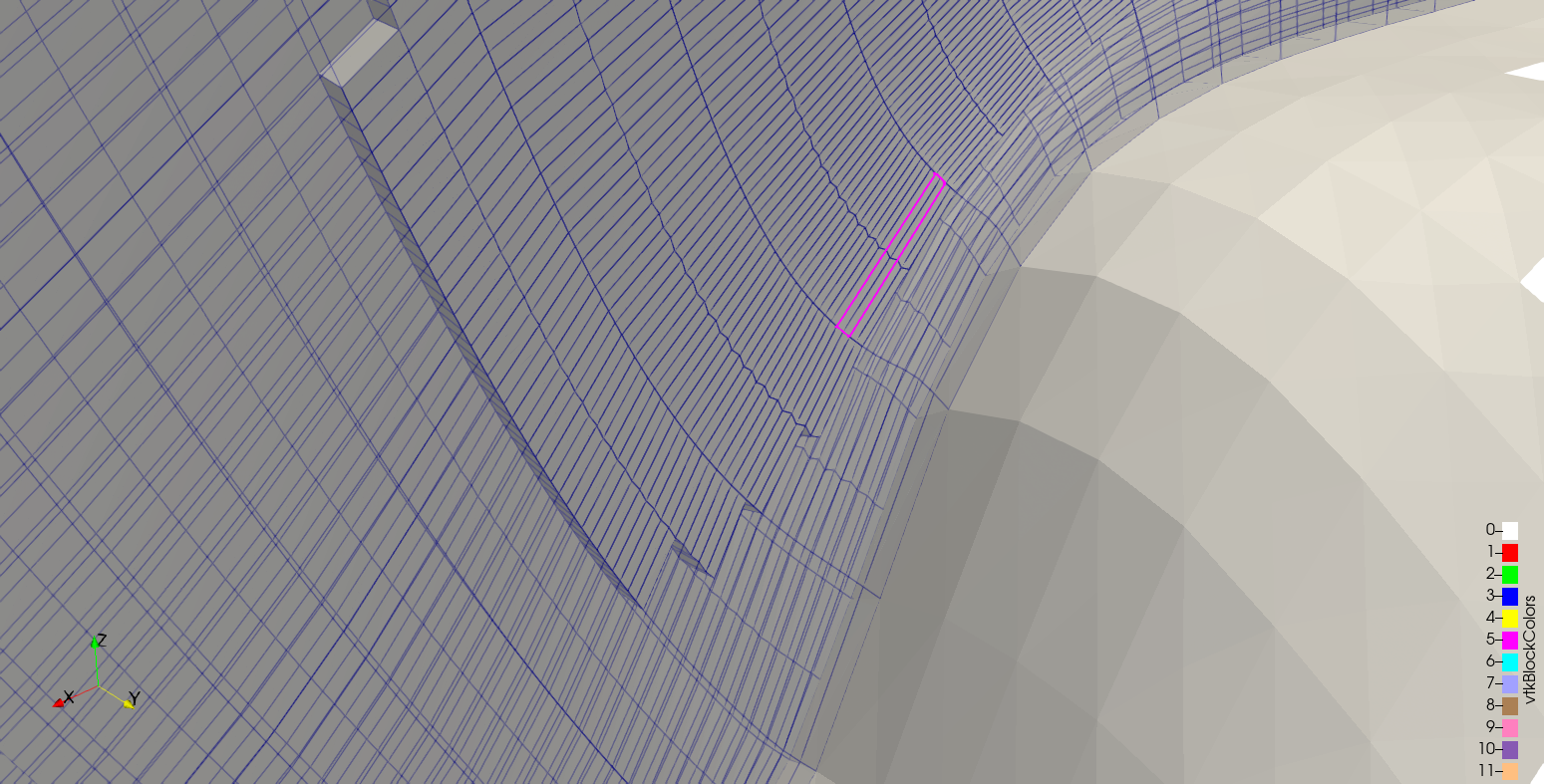

Description | After refineMesh with a pure heaxahedral mesh, generated by blockMesh, the maximum non-orthogonality increases a lot. This is due to the way new points are computed. For a face, the middle-points on the edges and the centroid of the face can be mis-aligned, creating the non orthogonality problem. This thing happens also in the case of flat faces (flatness=1). I'm attaching 3 images and a Python script which highlights this behavior: 1) zigzag_orig.png a crinkle slice of the original mesh before refineMesh, where a cell producing this problem is highlighted; 2) zigzag.png the refined mesh, where it is possible to see the zigzag behaviour created by refineMesh, which at the end results in increased non-orthogonality between the new smaller cells 3) Figure_1.pdf the points for the face highlighted in the previous figures, computed by the Python script (I checked and the new points have the same coordinates of those generated by refineMesh. The green point is the centroid, which is poorly aligned with the edge midpoints, producing the non-orthogonality. 4) checkRefine.py a Python script to create the previous plot. in the attached version the coordinates used for the previous figures are commented, while different coordinates for a flat face are used. This shows that the problem occurs also with perfectly flat faces. The effect is produced by the way the face centroid is computed, which takes into account the areas of the triangles obtained connecting the mean of the vertices with the sides of the face. A relatively small difference in the length of two opposite sides, for a face with a relatively large aspect ratio, produce significant differences in the areas, and thus moves the centroid toward the larger of the two opposite sides of the face. For the middle points of the edges we don't have this shift associated with the areas, and it would be difficult to imagine how to do this thing, because each edge belongs to two faces. So, the only way to improve the non-orthogonality could be, only for the refinement, to use the average of the vertices (black point in Figure_1.pdf) instead of the centroid. | ||||
Tags | No tags attached. | ||||
|
checkRefine.py (5,182 bytes)
import numpy as np import matplotlib.pyplot as plt from mpl_toolkits.mplot3d import Axes3D def calculate_face_center(face_points): """ Compute the geometric center (centroid) of a possibly non-planar face. Args: face_points (list of list): List of points defining the face. Each point is a 3D list [x, y, z]. Returns: np.array: The computed face center as a 3D vector. """ points = np.array(face_points) p_avg = np.mean(points, axis=0) # Step 1: Geometric average of vertices sumA = np.zeros(3) N = len(points) for i in range(N): p = points[i] p_next = points[(i + 1) % N] # Wrap around for last vertex sumA += np.cross(p_next - p, p_avg - p) # Step 2: Area normal sum sumA_norm = np.linalg.norm(sumA) if sumA_norm == 0: raise ValueError("Degenerate face: area normal is zero.") sumA_hat = sumA / sumA_norm # Step 3: Normalize area normal sumAn = 0.0 sumAnc = np.zeros(3) for i in range(N): p = points[i] p_next = points[(i + 1) % N] a = np.cross(p_next - p, p_avg - p) c = (p + p_next + p_avg) / 3.0 # Triangle center an = np.dot(a, sumA_hat) # Projected area print(p,p_next,p_avg) print(np.linalg.norm(a),an) sumAn += an sumAnc += an * c face_center = sumAnc / sumAn # Final centroid return face_center def compute_edge_midpoints(face_points): """ Compute the midpoints of the edges of a face. Args: face_points (list of list): List of points defining the face. Returns: list of np.array: List of midpoints for each edge. """ points = np.array(face_points) midpoints = [] N = len(points) for i in range(N): p = points[i] p_next = points[(i + 1) % N] midpoint = (p + p_next) / 2.0 midpoints.append(midpoint) return midpoints def set_axes_equal(ax): """ Set equal scaling for all axes in a 3D plot. This ensures that the x, y, and z axes have the same scale. """ limits = np.array([ ax.get_xlim3d(), ax.get_ylim3d(), ax.get_zlim3d(), ]) span = limits[:, 1] - limits[:, 0] center = np.mean(limits, axis=1) radius = 0.5 * max(span) ax.set_xlim3d([center[0] - radius, center[0] + radius]) ax.set_ylim3d([center[1] - radius, center[1] + radius]) ax.set_zlim3d([center[2] - radius, center[2] + radius]) def plot_face_with_centroid_and_midpoints(face_points): """ Plot a 3D face, its centroid, edge midpoints, and lines connecting midpoints to the centroid. Args: face_points (list of list): List of points defining the face. """ face_points = np.array(face_points) # Ensure points are a NumPy array p_avg = np.mean(face_points, axis=0) # Step 1: Geometric average of vertices print(p_avg) face_center = calculate_face_center(face_points) edge_midpoints = compute_edge_midpoints(face_points) # Extract face edges and vertices for plotting x = np.append(face_points[:, 0], face_points[0, 0]) # Close the face loop y = np.append(face_points[:, 1], face_points[0, 1]) z = np.append(face_points[:, 2], face_points[0, 2]) # Initialize 3D plot fig = plt.figure() ax = fig.add_subplot(111, projection='3d') # Plot the face edges ax.plot(x, y, z, color='blue', linewidth=2, label='Face Edges') # Plot the face edges ax.scatter(p_avg[0],p_avg[1],p_avg[2],color='black', s=30, label='p_avg') # Plot the face vertices ax.scatter(face_points[:, 0], face_points[:, 1], face_points[:, 2], color='red', s=50, label='Face Vertices') # Plot the computed centroid ax.scatter(face_center[0], face_center[1], face_center[2], color='green', s=100, label='Face Center') # Plot the midpoints of edges edge_midpoints = np.array(edge_midpoints) ax.scatter(edge_midpoints[:, 0], edge_midpoints[:, 1], edge_midpoints[:, 2], color='cyan', s=75, label='Edge Midpoints') # Plot lines connecting edge midpoints to the centroid for midpoint in edge_midpoints: ax.plot([midpoint[0], face_center[0]], [midpoint[1], face_center[1]], [midpoint[2], face_center[2]], color='purple', linestyle='--', linewidth=1) # Set equal scaling for all axes set_axes_equal(ax) # Set plot labels and title ax.set_xlabel('X') ax.set_ylabel('Y') ax.set_zlabel('Z') ax.set_title('3D Face with Centroid and Edge Midpoints') # Add a legend ax.legend() # Show the plot plt.show() if __name__ == "__main__": # Example: Define a quadrilateral face with slight non-planarity face_points = [ [0.0, 0.0, 0.0], [0.0, 0.5, 0.0], [10.0, 0.6, 0.0], [10.0, -0.1, 0.0] # [-1365.22, 361.362, 181.82], # [-1366.40, 361.782, 180.357], # [-1350.43, 361.919, 165.43], # [-1348.90, 361.541, 167.321] ] # Call the plotting function plot_face_with_centroid_and_midpoints(face_points) |
|
