Summary0003694: snappyHexMesh ver 8 breaks my Geometry

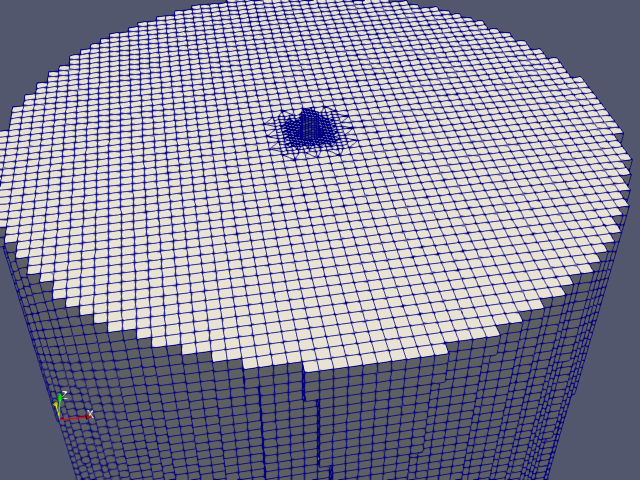

DescriptionProblem: Meshing with snappyHexMesh ver 8 cuts off the inlet patch and a portion of the inlet pipe of this geometry and eventually removes them. This happens during the castellation stage itself.

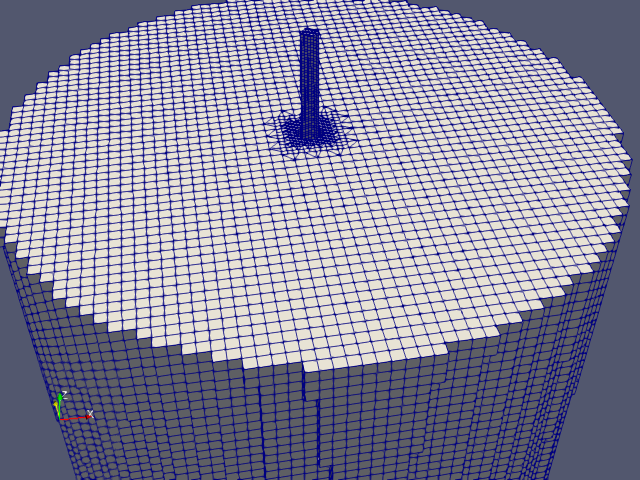

snappyHexMesh ver 7 runs fine on the same geometry with the same settings.
Steps To ReproducePlease unpack and run the ./Allrun.sh on the attached case using OpenFOAM versions 7 and 8.
Additional InformationPlease see the attached pictures.
TagsNo tags attached.

Activities

kpish20

2021-07-11 11:22

reporter

mixingTank.tar.gz (20,290 bytes)

henry

2021-07-11 11:40

manager   ~0012081

Have you tried different settings? Different levels of refinement in the inlet pipe for example?

kpish20

2021-07-11 20:26

reporter   ~0012082

Thanks for your kind reply. I first tried with different volume refinement settings on the top pipe, that didn't work. Then changed the max. surface refinement to one more level and that did the trick:

refinementSurfaces
{
    MixingTank
    {
    level (1 2);
    }
}

Perhaps the new version is more sensitive to this aspect. This results in a few more cells but I'm fine with it. I don't think we need to look at the issue any further, so you may please close the thread.

Issue History

Date Modified Username Field Change
2021-07-11 11:22 kpish20 New Issue
2021-07-11 11:22 kpish20 File Added: mixingTank.tar.gz
2021-07-11 11:22 kpish20 File Added: CastellatedMesh_v8.png
2021-07-11 11:22 kpish20 File Added: CastellatedMesh_v7.png
2021-07-11 11:40 henry Note Added: 0012081
2021-07-11 20:26 kpish20 Note Added: 0012082
2021-07-11 22:12 henry Assigned To => henry
2021-07-11 22:12 henry Status new => closed
2021-07-11 22:12 henry Resolution open => no change required
