Summary0003681: chtMultiRegionFoam: consideration of radiation leads to error

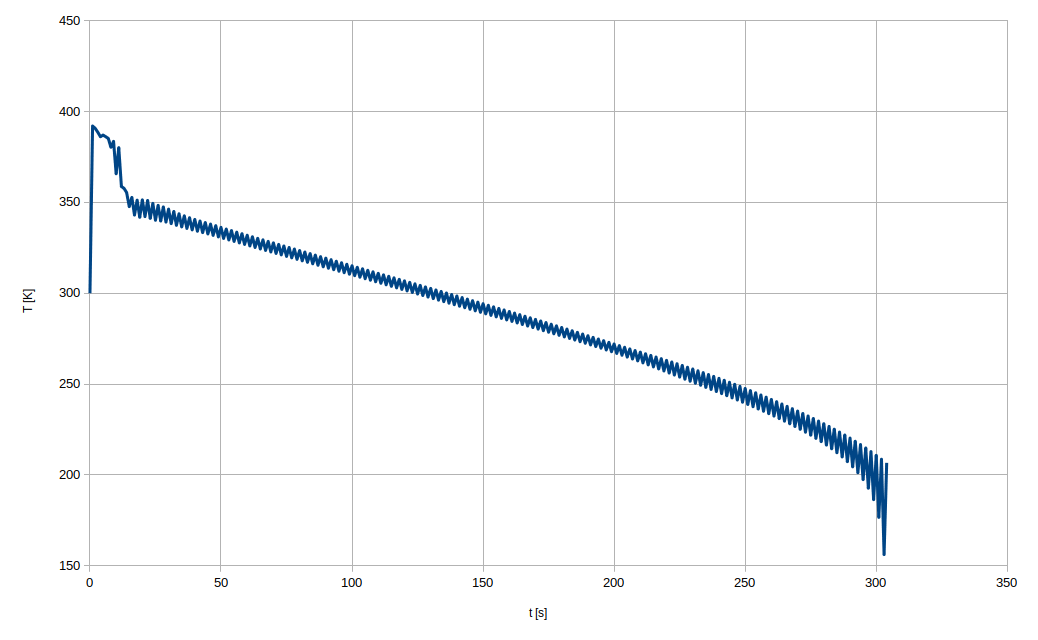

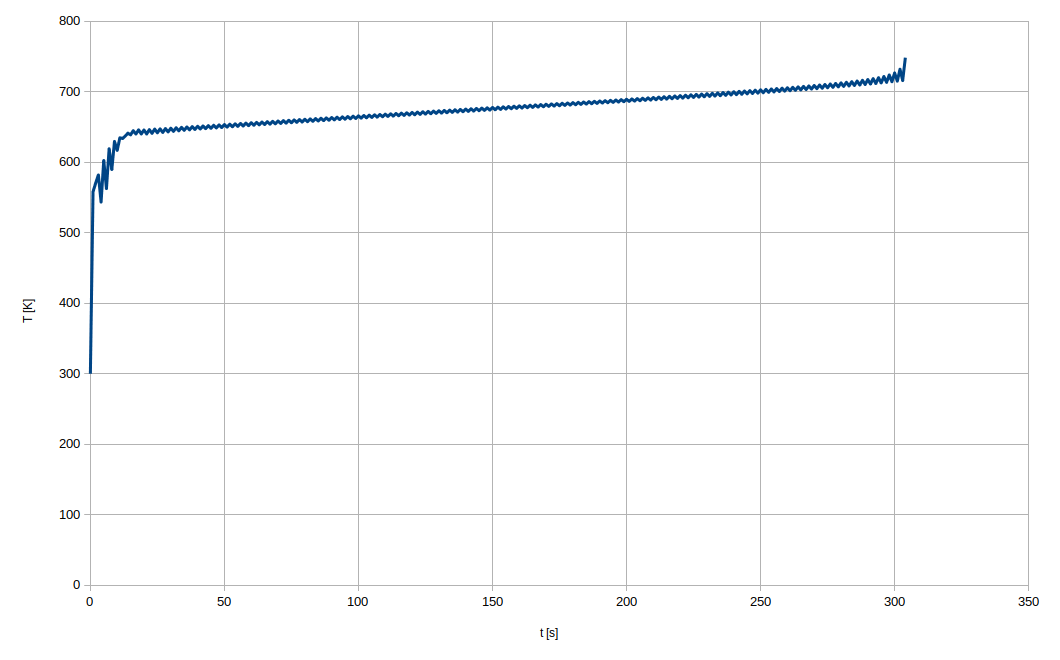

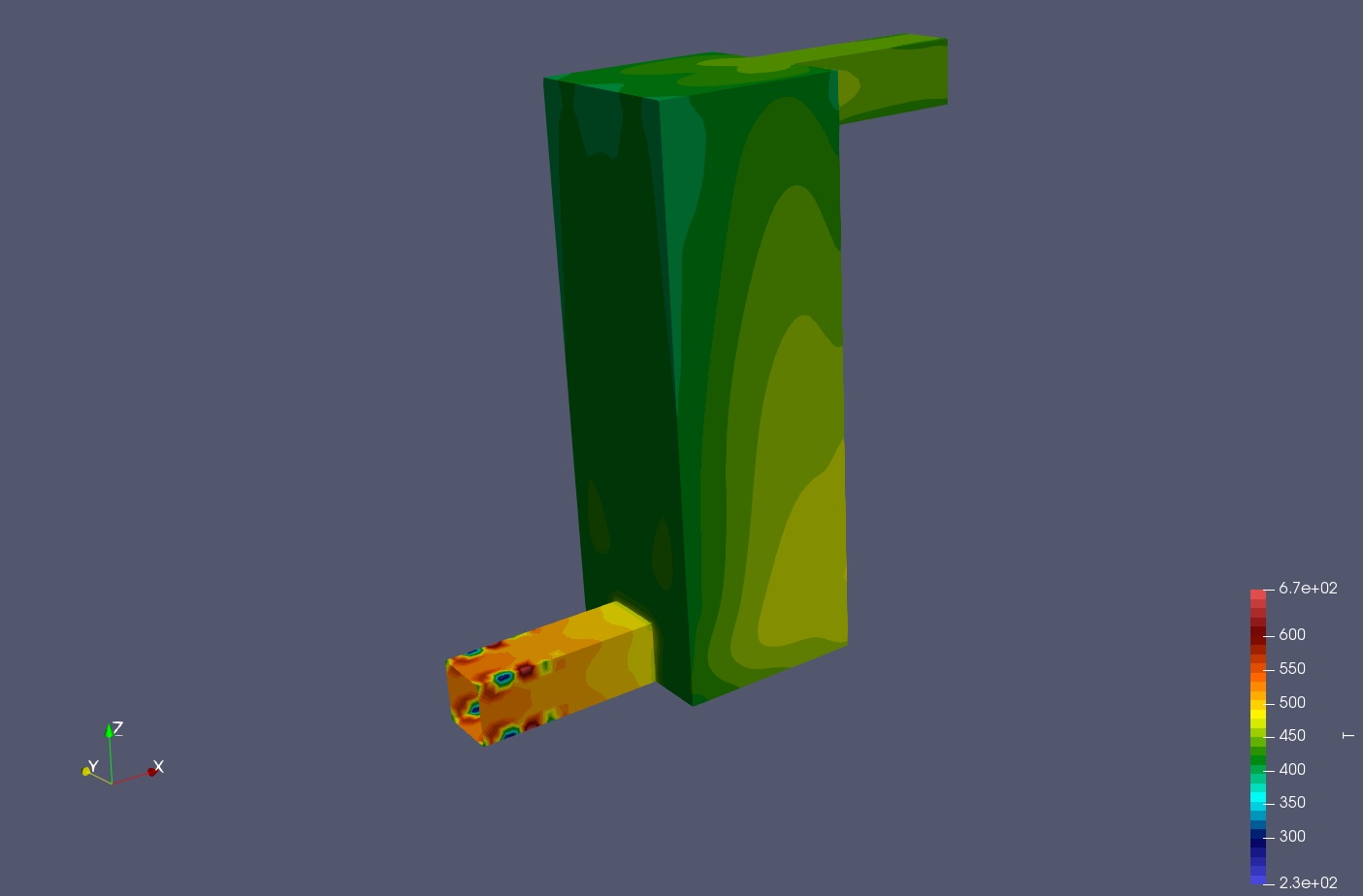

DescriptionIn the example attached, hot air enters at the inlet. The wall (solid) is heated in the process. The radiation was also taken into account (P1 model). The minimum and maximum temperature of the patch "air_to_solid" is also recorded (files: maxT.png, minT.png) . After a certain time the temperature of the patch "air_to_solid" starts to fluctuate and the program ends with an error.
Steps To Reproduceattached files
TagsNo tags attached.

Activities

HTauber

2021-06-02 12:18

reporter

heating.zip (25,832 bytes)
error (4,831 bytes)
Solving for fluid region air
DILUPBiCGStab:  Solving for Ux, Initial residual = 7.2581579e-05, Final residual = 8.6856316e-08, No Iterations 3
DILUPBiCGStab:  Solving for Uy, Initial residual = 0.00019034718, Final residual = 5.79818e-08, No Iterations 4
DILUPBiCGStab:  Solving for Uz, Initial residual = 3.6759732e-05, Final residual = 6.1604939e-08, No Iterations 3
GAMG:  Solving for G, Initial residual = 0.013162272, Final residual = 7.7868023e-06, No Iterations 8
DILUPBiCGStab:  Solving for h, Initial residual = 0.00030661959, Final residual = 9.8465194e-08, No Iterations 50
Min/max T:206.03977 1100
GAMG:  Solving for p_rgh, Initial residual = 0.00011396072, Final residual = 1.0200407e-06, No Iterations 3
time step continuity errors : sum local = 3.752613e-07, global = -2.8155396e-09, cumulative = -2.8155396e-09
GAMG:  Solving for p_rgh, Initial residual = 0.00037610115, Final residual = 2.2096899e-06, No Iterations 3
time step continuity errors : sum local = 8.1294157e-07, global = -4.7795382e-08, cumulative = -5.0610922e-08
DILUPBiCGStab:  Solving for epsilon, Initial residual = 3.8229421e-06, Final residual = 8.8829664e-08, No Iterations 1
DILUPBiCGStab:  Solving for k, Initial residual = 2.5284785e-05, Final residual = 5.475878e-08, No Iterations 3

Solving for solid region solid
DICPCG:  Solving for e, Initial residual = 0.00021902473, Final residual = 2.3658158e-09, No Iterations 1
Min/max T:-1.1362344 716.3195
ExecutionTime = 74.06 s  ClockTime = 74 s

Region: air Courant Number mean: 5.2394771 max: 25.839747
Region: solid Diffusion Number mean: 5.193752e-05 max: 0.00028983258
deltaT = 0.2
Time = 305


Solving for fluid region air
DILUPBiCGStab:  Solving for Ux, Initial residual = 7.4061504e-05, Final residual = 9.2678964e-08, No Iterations 3
DILUPBiCGStab:  Solving for Uy, Initial residual = 0.00019924817, Final residual = 6.7456997e-08, No Iterations 4
DILUPBiCGStab:  Solving for Uz, Initial residual = 3.7408282e-05, Final residual = 6.3346732e-08, No Iterations 3
GAMG:  Solving for G, Initial residual = 0.013282634, Final residual = 7.3390802e-06, No Iterations 6
DILUPBiCGStab:  Solving for h, Initial residual = 0.0003148991, Final residual = 6.4652176e-08, No Iterations 62
[1] #0  Foam::error::printStack(Foam::Ostream&) at ??:?
[1] #1  Foam::sigFpe::sigHandler(int) at ??:?
[1] #2  ? in "/lib/x86_64-linux-gnu/libc.so.6"
[1] #3  Foam::heRhoThermo<Foam::rhoReactionThermo::composite, Foam::SpecieMixture<Foam::singleComponentMixture<Foam::sutherlandTransport<Foam::species::thermo<Foam::janafThermo<Foam::perfectGas<Foam::specie> >, Foam::sensibleEnthalpy> > > > >::calculate() at ??:?
[1] #4  Foam::heRhoThermo<Foam::rhoReactionThermo::composite, Foam::SpecieMixture<Foam::singleComponentMixture<Foam::sutherlandTransport<Foam::species::thermo<Foam::janafThermo<Foam::perfectGas<Foam::specie> >, Foam::sensibleEnthalpy> > > > >::correct() at ??:?
[1] #5  ? in "/opt/openfoam-dev/platforms/linux64GccDPInt32Opt/bin/chtMultiRegionFoam"
[1] #6  __libc_start_main in "/lib/x86_64-linux-gnu/libc.so.6"
[1] #7  ? in "/opt/openfoam-dev/platforms/linux64GccDPInt32Opt/bin/chtMultiRegionFoam"
[xilence:51106] *** Process received signal ***
[xilence:51106] Signal: Floating point exception (8)
[xilence:51106] Signal code:  (-6)
[xilence:51106] Failing at address: 0x3e80000c7a2
[xilence:51106] [ 0] /lib/x86_64-linux-gnu/libc.so.6(+0x3f040)[0x1478ac215040]
[xilence:51106] [ 1] /lib/x86_64-linux-gnu/libc.so.6(gsignal+0xc7)[0x1478ac214fb7]
[xilence:51106] [ 2] /lib/x86_64-linux-gnu/libc.so.6(+0x3f040)[0x1478ac215040]
[xilence:51106] [ 3] /opt/openfoam-dev/platforms/linux64GccDPInt32Opt/lib/libreactionThermophysicalModels.so(_ZN4Foam11heRhoThermoINS_17rhoReactionThermo9compositeENS_13SpecieMixtureINS_22singleComponentMixtureINS_19sutherlandTransportINS_7species6thermoINS_11janafThermoINS_10perfectGasINS_6specieEEEEENS_16sensibleEnthalpyEEEEEEEEEE9calculateEv+0x7df)[0x1478b4594e6f]
[xilence:51106] [ 4] /opt/openfoam-dev/platforms/linux64GccDPInt32Opt/lib/libreactionThermophysicalModels.so(_ZN4Foam11heRhoThermoINS_17rhoReactionThermo9compositeENS_13SpecieMixtureINS_22singleComponentMixtureINS_19sutherlandTransportINS_7species6thermoINS_11janafThermoINS_10perfectGasINS_6specieEEEEENS_16sensibleEnthalpyEEEEEEEEEE7correctEv+0x1e)[0x1478b459536e]
[xilence:51106] [ 5] chtMultiRegionFoam(+0x3da01)[0x55de5ac26a01]
[xilence:51106] [ 6] /lib/x86_64-linux-gnu/libc.so.6(__libc_start_main+0xe7)[0x1478ac1f7bf7]
[xilence:51106] [ 7] chtMultiRegionFoam(+0x4590a)[0x55de5ac2e90a]
[xilence:51106] *** End of error message ***
--------------------------------------------------------------------------
mpirun noticed that process rank 1 with PID 0 on node xilence exited on signal 8 (Floating point exception).
--------------------------------------------------------------------------
error (4,831 bytes)

henry

2021-06-02 12:28

manager   ~0012044

User support request
