Summary0003471: Bugs to calculate the thickness of liquid sheet in LISAAtomization
DescriptionThe codes in LISAAtomization.C#L148
hSheet = volFlowRate/(constant::mathematical::pi*delta*Urel);

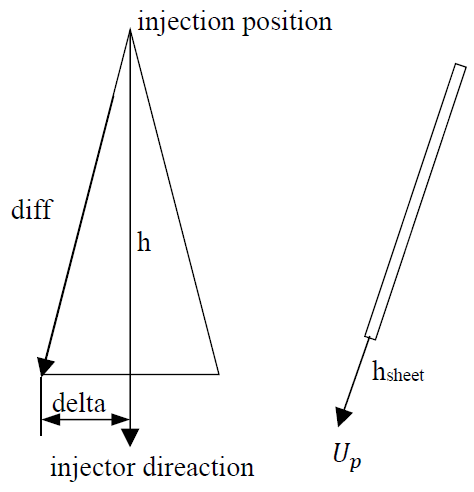

It is obviously to demonstrate the calculation of thickness of liquid sheet, hSheet. volFlowRate is the volume rate [m3/s]. delta is the radial distance from the center line (injector direction) to the mid-line of the sheet (umbrella rib). Urel is the velocity of parcel.
Should not it be calculated by the following sentence?
hSheet = volFlowRate/(constant::mathematical::twoPi*delta*Urel);
