View Issue Details

IDProjectCategoryView StatusLast Update
0003349OpenFOAMBugpublic2019-09-18 14:16
Reporterhk318i Assigned Tohenry
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
Product Versiondev
Fixed in Versiondev
Summary0003349: block face orientation checks don't consider the curved edges
DescriptionHello,

The extra checks added in OpenFOAM-dev:87c78ca1ef8752758311177061617c18ace5f622 don't consider the topology of the block.
In case of curved faces, it gives a false error about the orientation of the faces. The issue of such cases is that some face centres and the block centre are outside the block.

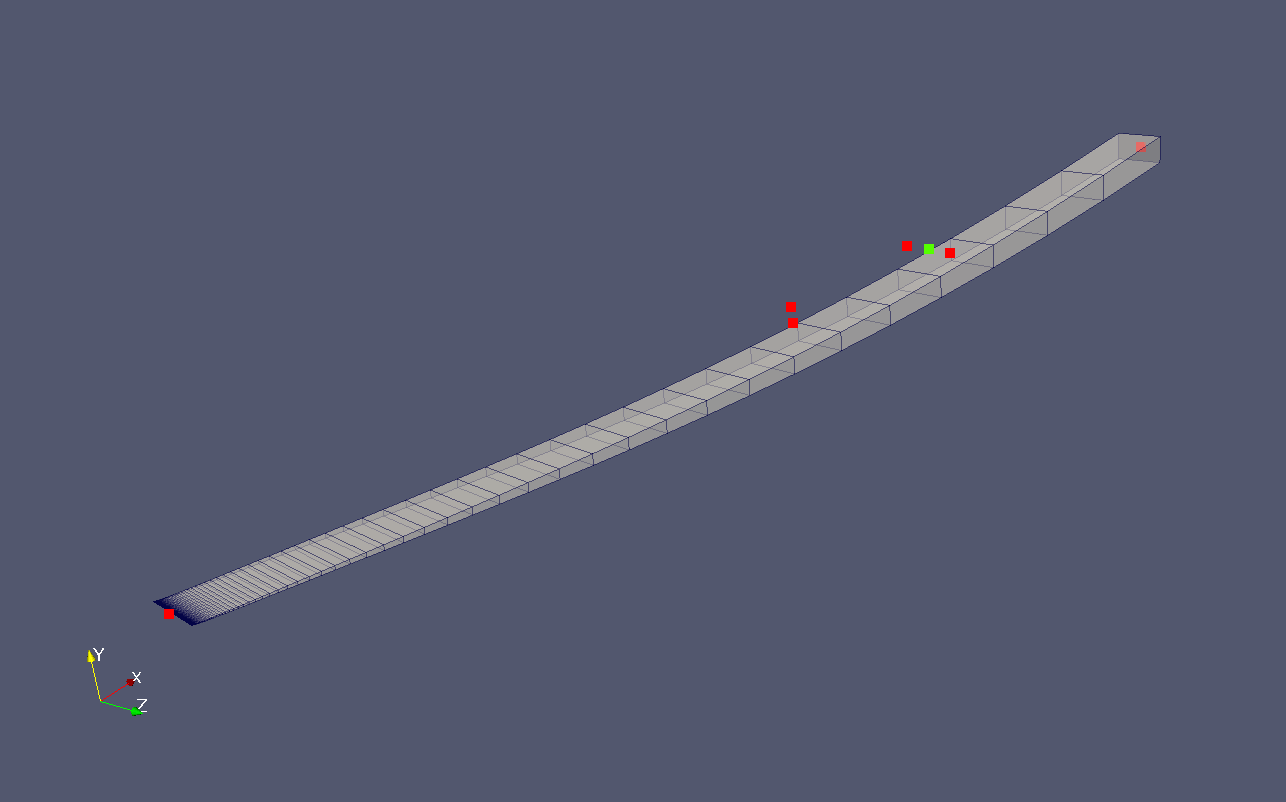

Please check the attached figure. Also, attached here ``blockMeshDict`` as an example for such case (sorry it is extreme). Although the angle of this block is relatively high, such block can be meshed without problem in OpenFOAM versions earlier to version-5. I think this is because the ``blockShape_ `` is basically considered as ``cellShape`` type which is not very accurate because cells are limited to flat face unlike blocks.

TagsNo tags attached.

Activities

hk318i

2019-09-17 09:39

reporter

blockMeshDict (40,046 bytes)
/*--------------------------------*- C++ -*----------------------------------*\
| =========                 |                                                 |
| \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \\    /   O peration     | Version:  2.3.0                                 |
|   \\  /    A nd           | Web:      www.OpenFOAM.com                      |
|    \\/     M anipulation  |                                                 |
\\*--------------------------------------------------------------------------*/
FoamFile
{
    version     4.0;
    format      ascii;
    class       dictionary;
    object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1 ;

vertices
(
    //front side, airfoil surface
    (    1.00000000000000    -0.00313248300000     0.00000000000000 ) //    0
    (    0.99928941200000    -0.00300336924000     0.00000000000000 ) //    1
    //front side, farfield surface
    (   24.88874260000000    -2.35594792000000     0.00000000000000 ) //    2
    (   24.82608800000000    -2.94369738000000     0.00000000000000 ) //    3
    //back side, airfoil surface
    (    1.00000000000000    -0.00313248300000     1.00000000000000 ) //    4
    (    0.99928941200000    -0.00300336924000     1.00000000000000 ) //    5
    //back side, farfield surface
    (   24.88874260000000    -2.35594792000000     1.00000000000000 ) //    6
    (   24.82608800000000    -2.94369738000000     1.00000000000000 ) //    7
);

blocks
(
    hex (      1 3 2 0 5 7 6 4 ) ( 127 1 1 ) edgeGrading ( 641295.185545354616  641295.185545354616  641295.185545354616  641295.185545354616 1 1 1 1 1 1 1 1 )    //     4
);

edges
(
      spline      0    2 (    //     0
        (     1.00000248000000    -0.00313545600000     0.00000000000000 )
        (     1.00000524000000    -0.00313876115000     0.00000000000000 )
        (     1.00000831000000    -0.00314243554000     0.00000000000000 )
        (     1.00001172000000    -0.00314652043000     0.00000000000000 )
        (     1.00001551000000    -0.00315106167000     0.00000000000000 )
        (     1.00001972000000    -0.00315611026000     0.00000000000000 )
        (     1.00002440000000    -0.00316172286000     0.00000000000000 )
        (     1.00002961000000    -0.00316796251000     0.00000000000000 )
        (     1.00003540000000    -0.00317489926000     0.00000000000000 )
        (     1.00004184000000    -0.00318261101000     0.00000000000000 )
        (     1.00004899000000    -0.00319118435000     0.00000000000000 )
        (     1.00005695000000    -0.00320071558000     0.00000000000000 )
        (     1.00006579000000    -0.00321131175000     0.00000000000000 )
        (     1.00007562000000    -0.00322309187000     0.00000000000000 )
        (     1.00008655000000    -0.00323618831000     0.00000000000000 )
        (     1.00009870000000    -0.00325074821000     0.00000000000000 )
        (     1.00011220000000    -0.00326693518000     0.00000000000000 )
        (     1.00012722000000    -0.00328493116000     0.00000000000000 )
        (     1.00014391000000    -0.00330493844000     0.00000000000000 )
        (     1.00016246000000    -0.00332718199000     0.00000000000000 )
        (     1.00018308000000    -0.00335191193000     0.00000000000000 )
        (     1.00020601000000    -0.00337940643000     0.00000000000000 )
        (     1.00023149000000    -0.00340997479000     0.00000000000000 )
        (     1.00025982000000    -0.00344396095000     0.00000000000000 )
        (     1.00029130000000    -0.00348174741000     0.00000000000000 )
        (     1.00032630000000    -0.00352375948000     0.00000000000000 )
        (     1.00036521000000    -0.00357047017000     0.00000000000000 )
        (     1.00040845000000    -0.00362240551000     0.00000000000000 )
        (     1.00045651000000    -0.00368015050000     0.00000000000000 )
        (     1.00050993000000    -0.00374435583000     0.00000000000000 )
        (     1.00056931000000    -0.00381574520000     0.00000000000000 )
        (     1.00063530000000    -0.00389512361000     0.00000000000000 )
        (     1.00070865000000    -0.00398338613000     0.00000000000000 )
        (     1.00079016000000    -0.00408152681000     0.00000000000000 )
        (     1.00088077000000    -0.00419064633000     0.00000000000000 )
        (     1.00098150000000    -0.00431195603000     0.00000000000000 )
        (     1.00109353000000    -0.00444677422000     0.00000000000000 )
        (     1.00121826000000    -0.00459650755000     0.00000000000000 )
        (     1.00135735000000    -0.00476260544000     0.00000000000000 )
        (     1.00151292000000    -0.00494646793000     0.00000000000000 )
        (     1.00168776000000    -0.00514926192000     0.00000000000000 )
        (     1.00188565000000    -0.00537162357000     0.00000000000000 )
        (     1.00211170000000    -0.00561329179000     0.00000000000000 )
        (     1.00237259000000    -0.00587263378000     0.00000000000000 )
        (     1.00267629000000    -0.00614645568000     0.00000000000000 )
        (     1.00303118000000    -0.00643048607000     0.00000000000000 )
        (     1.00344481000000    -0.00672075141000     0.00000000000000 )
        (     1.00392318000000    -0.00701530086000     0.00000000000000 )
        (     1.00447105000000    -0.00731522196000     0.00000000000000 )
        (     1.00509287000000    -0.00762438754000     0.00000000000000 )
        (     1.00579368000000    -0.00794830902000     0.00000000000000 )
        (     1.00657983000000    -0.00829285098000     0.00000000000000 )
        (     1.00745920000000    -0.00866334889000     0.00000000000000 )
        (     1.00844135000000    -0.00906429934000     0.00000000000000 )
        (     1.00953748000000    -0.00949949891000     0.00000000000000 )
        (     1.01076034000000    -0.00997237857000     0.00000000000000 )
        (     1.01212431000000    -0.01048632440000     0.00000000000000 )
        (     1.01364541000000    -0.01104489760000     0.00000000000000 )
        (     1.01534149000000    -0.01165195660000     0.00000000000000 )
        (     1.01723239000000    -0.01231171350000     0.00000000000000 )
        (     1.01934019000000    -0.01302875480000     0.00000000000000 )
        (     1.02168947000000    -0.01380804360000     0.00000000000000 )
        (     1.02430758000000    -0.01465491920000     0.00000000000000 )
        (     1.02722497000000    -0.01557510090000     0.00000000000000 )
        (     1.03047556000000    -0.01657470550000     0.00000000000000 )
        (     1.03409711000000    -0.01766028030000     0.00000000000000 )
        (     1.03813160000000    -0.01883885360000     0.00000000000000 )
        (     1.04262577000000    -0.02011800430000     0.00000000000000 )
        (     1.04763160000000    -0.02150594610000     0.00000000000000 )
        (     1.05320688000000    -0.02301162890000     0.00000000000000 )
        (     1.05941584000000    -0.02464485300000     0.00000000000000 )
        (     1.06632990000000    -0.02641639790000     0.00000000000000 )
        (     1.07402843000000    -0.02833816530000     0.00000000000000 )
        (     1.08259965000000    -0.03042333780000     0.00000000000000 )
        (     1.09214161000000    -0.03268655400000     0.00000000000000 )
        (     1.10276326000000    -0.03514410440000     0.00000000000000 )
        (     1.11458570000000    -0.03781414950000     0.00000000000000 )
        (     1.12774353000000    -0.04071696430000     0.00000000000000 )
        (     1.14238631000000    -0.04387521330000     0.00000000000000 )
        (     1.15868040000000    -0.04731373110000     0.00000000000000 )
        (     1.17681069000000    -0.05106024610000     0.00000000000000 )
        (     1.19698229000000    -0.05514776080000     0.00000000000000 )
        (     1.21942339000000    -0.05961204080000     0.00000000000000 )
        (     1.24438765000000    -0.06449324310000     0.00000000000000 )
        (     1.27215695000000    -0.06983647800000     0.00000000000000 )
        (     1.30304460000000    -0.07569243970000     0.00000000000000 )
        (     1.33739879000000    -0.08211810960000     0.00000000000000 )
        (     1.37560650000000    -0.08917754020000     0.00000000000000 )
        (     1.41809784000000    -0.09694272310000     0.00000000000000 )
        (     1.46535083000000    -0.10549454800000     0.00000000000000 )
        (     1.51789675000000    -0.11492386100000     0.00000000000000 )
        (     1.57632608000000    -0.12533261600000     0.00000000000000 )
        (     1.64129514000000    -0.13683514200000     0.00000000000000 )
        (     1.71353341000000    -0.14955950900000     0.00000000000000 )
        (     1.79385172000000    -0.16364901200000     0.00000000000000 )
        (     1.88315137000000    -0.17926375800000     0.00000000000000 )
        (     1.98243426000000    -0.19658236700000     0.00000000000000 )
        (     2.09281415000000    -0.21580376600000     0.00000000000000 )
        (     2.21552927000000    -0.23714906600000     0.00000000000000 )
        (     2.35195625000000    -0.26086349300000     0.00000000000000 )
        (     2.50362578000000    -0.28721832800000     0.00000000000000 )
        (     2.67223994000000    -0.31651278000000     0.00000000000000 )
        (     2.85969165000000    -0.34907568700000     0.00000000000000 )
        (     3.06808626000000    -0.38526685200000     0.00000000000000 )
        (     3.29976583000000    -0.42547776500000     0.00000000000000 )
        (     3.55733620000000    -0.47013126600000     0.00000000000000 )
        (     3.84369740000000    -0.51967949500000     0.00000000000000 )
        (     4.16207788000000    -0.57459910300000     0.00000000000000 )
        (     4.51607318000000    -0.63538212100000     0.00000000000000 )
        (     4.90968966000000    -0.70252034600000     0.00000000000000 )
        (     5.34739424000000    -0.77648088300000     0.00000000000000 )
        (     5.83417048000000    -0.85767123500000     0.00000000000000 )
        (     6.37558130000000    -0.94639449700000     0.00000000000000 )
        (     6.97783778000000    -1.04279872000000     0.00000000000000 )
        (     7.64793783000000    -1.14639959000000     0.00000000000000 )
        (     8.39360835000000    -1.25687543000000     0.00000000000000 )
        (     9.22348632000000    -1.37340232000000     0.00000000000000 )
        (    10.14717460000000    -1.49481308000000     0.00000000000000 )
        (    11.17533260000000    -1.61960907000000     0.00000000000000 )
        (    12.31978320000000    -1.74594896000000     0.00000000000000 )
        (    13.59364260000000    -1.87155028000000     0.00000000000000 )
        (    15.01147420000000    -1.99339571000000     0.00000000000000 )
        (    16.58962950000000    -2.10423257000000     0.00000000000000 )
        (    18.34570760000000    -2.20131391000000     0.00000000000000 )
        (    20.29933830000000    -2.28036994000000     0.00000000000000 )
        (    22.47232760000000    -2.33445395000000     0.00000000000000 )
    )
    spline      1    3 (    //     1
        (     0.99928872000000    -0.00300717937000     0.00000000000000 )
        (     0.99928795000000    -0.00301141515000     0.00000000000000 )
        (     0.99928709500000    -0.00301612414000     0.00000000000000 )
        (     0.99928614600000    -0.00302135970000     0.00000000000000 )
        (     0.99928509400000    -0.00302718063000     0.00000000000000 )
        (     0.99928392800000    -0.00303365253000     0.00000000000000 )
        (     0.99928263600000    -0.00304084836000     0.00000000000000 )
        (     0.99928120800000    -0.00304884936000     0.00000000000000 )
        (     0.99927962900000    -0.00305774593000     0.00000000000000 )
        (     0.99927788700000    -0.00306763873000     0.00000000000000 )
        (     0.99927596900000    -0.00307863988000     0.00000000000000 )
        (     0.99927386000000    -0.00309087428000     0.00000000000000 )
        (     0.99927154800000    -0.00310448112000     0.00000000000000 )
        (     0.99926902200000    -0.00311961540000     0.00000000000000 )
        (     0.99926627000000    -0.00313644997000     0.00000000000000 )
        (     0.99926328700000    -0.00315517750000     0.00000000000000 )
        (     0.99926007000000    -0.00317601280000     0.00000000000000 )
        (     0.99925662300000    -0.00319919540000     0.00000000000000 )
        (     0.99925295900000    -0.00322499235000     0.00000000000000 )
        (     0.99924909900000    -0.00325370091000     0.00000000000000 )
        (     0.99924508000000    -0.00328565216000     0.00000000000000 )
        (     0.99924095600000    -0.00332121439000     0.00000000000000 )
        (     0.99923679900000    -0.00336079688000     0.00000000000000 )
        (     0.99923270800000    -0.00340485387000     0.00000000000000 )
        (     0.99922881200000    -0.00345388876000     0.00000000000000 )
        (     0.99922527000000    -0.00350845861000     0.00000000000000 )
        (     0.99922228300000    -0.00356917887000     0.00000000000000 )
        (     0.99922009500000    -0.00363672858000     0.00000000000000 )
        (     0.99921899600000    -0.00371185585000     0.00000000000000 )
        (     0.99921933400000    -0.00379538412000     0.00000000000000 )
        (     0.99922151400000    -0.00388821886000     0.00000000000000 )
        (     0.99922600900000    -0.00399135530000     0.00000000000000 )
        (     0.99923336200000    -0.00410588687000     0.00000000000000 )
        (     0.99924419900000    -0.00423301489000     0.00000000000000 )
        (     0.99925923000000    -0.00437405969000     0.00000000000000 )
        (     0.99927925400000    -0.00453047386000     0.00000000000000 )
        (     0.99930515700000    -0.00470385841000     0.00000000000000 )
        (     0.99933792200000    -0.00489598007000     0.00000000000000 )
        (     0.99937868500000    -0.00510878184000     0.00000000000000 )
        (     0.99942890600000    -0.00534436681000     0.00000000000000 )
        (     0.99949087900000    -0.00560488694000     0.00000000000000 )
        (     0.99956882900000    -0.00589219552000     0.00000000000000 )
        (     0.99966924600000    -0.00620749710000     0.00000000000000 )
        (     0.99980295800000    -0.00655008075000     0.00000000000000 )
        (     0.99998505600000    -0.00691587386000     0.00000000000000 )
        (     1.00023254000000    -0.00729648878000     0.00000000000000 )
        (     1.00055958000000    -0.00768077488000     0.00000000000000 )
        (     1.00097390000000    -0.00805917202000     0.00000000000000 )
        (     1.00147770000000    -0.00842753797000     0.00000000000000 )
        (     1.00207112000000    -0.00878766397000     0.00000000000000 )
        (     1.00275505000000    -0.00914565541000     0.00000000000000 )
        (     1.00353211000000    -0.00951033742000     0.00000000000000 )
        (     1.00440675000000    -0.00989224772000     0.00000000000000 )
        (     1.00538516000000    -0.01030276270000     0.00000000000000 )
        (     1.00647546000000    -0.01075298800000     0.00000000000000 )
        (     1.00768795000000    -0.01125258460000     0.00000000000000 )
        (     1.00903545000000    -0.01180906240000     0.00000000000000 )
        (     1.01053343000000    -0.01242787730000     0.00000000000000 )
        (     1.01219987000000    -0.01311314540000     0.00000000000000 )
        (     1.01405513000000    -0.01386849790000     0.00000000000000 )
        (     1.01612190000000    -0.01469773010000     0.00000000000000 )
        (     1.01842531000000    -0.01560515970000     0.00000000000000 )
        (     1.02099315000000    -0.01659577240000     0.00000000000000 )
        (     1.02385619000000    -0.01767525530000     0.00000000000000 )
        (     1.02704852000000    -0.01884999160000     0.00000000000000 )
        (     1.03060800000000    -0.02012705760000     0.00000000000000 )
        (     1.03457668000000    -0.02151423930000     0.00000000000000 )
        (     1.03900127000000    -0.02302007550000     0.00000000000000 )
        (     1.04393367000000    -0.02465392750000     0.00000000000000 )
        (     1.04943158000000    -0.02642607360000     0.00000000000000 )
        (     1.05555909000000    -0.02834782490000     0.00000000000000 )
        (     1.06238744000000    -0.03043166170000     0.00000000000000 )
        (     1.06999579000000    -0.03269138840000     0.00000000000000 )
        (     1.07847210000000    -0.03514230850000     0.00000000000000 )
        (     1.08791410000000    -0.03780142020000     0.00000000000000 )
        (     1.09843040000000    -0.04068763510000     0.00000000000000 )
        (     1.11014172000000    -0.04382202420000     0.00000000000000 )
        (     1.12318217000000    -0.04722809370000     0.00000000000000 )
        (     1.13770082000000    -0.05093209610000     0.00000000000000 )
        (     1.15386331000000    -0.05496338190000     0.00000000000000 )
        (     1.17185373000000    -0.05935479600000     0.00000000000000 )
        (     1.19187667000000    -0.06414312640000     0.00000000000000 )
        (     1.21415950000000    -0.06936961080000     0.00000000000000 )
        (     1.23895487000000    -0.07508050720000     0.00000000000000 )
        (     1.26654360000000    -0.08132773600000     0.00000000000000 )
        (     1.29723774000000    -0.08816960080000     0.00000000000000 )
        (     1.33138408000000    -0.09567159330000     0.00000000000000 )
        (     1.36936803000000    -0.10390729100000     0.00000000000000 )
        (     1.41161789000000    -0.11295935500000     0.00000000000000 )
        (     1.45860964000000    -0.12292062900000     0.00000000000000 )
        (     1.51087226000000    -0.13389536000000     0.00000000000000 )
        (     1.56899364000000    -0.14600052800000     0.00000000000000 )
        (     1.63362715000000    -0.15936730400000     0.00000000000000 )
        (     1.70549897000000    -0.17414264500000     0.00000000000000 )
        (     1.78541619000000    -0.19049101000000     0.00000000000000 )
        (     1.87427594000000    -0.20859623300000     0.00000000000000 )
        (     1.97307539000000    -0.22866351600000     0.00000000000000 )
        (     2.08292304000000    -0.25092156800000     0.00000000000000 )
        (     2.20505119000000    -0.27562486700000     0.00000000000000 )
        (     2.34082990000000    -0.30305601500000     0.00000000000000 )
        (     2.49178250000000    -0.33352816900000     0.00000000000000 )
        (     2.65960291000000    -0.36738745500000     0.00000000000000 )
        (     2.84617500000000    -0.40501528200000     0.00000000000000 )
        (     3.05359414000000    -0.44683037200000     0.00000000000000 )
        (     3.28419144000000    -0.49329022900000     0.00000000000000 )
        (     3.54056080000000    -0.54489162400000     0.00000000000000 )
        (     3.82558940000000    -0.60216940100000     0.00000000000000 )
        (     4.14249209000000    -0.66569249500000     0.00000000000000 )
        (     4.49485035000000    -0.73605547000000     0.00000000000000 )
        (     4.88665672000000    -0.81386325400000     0.00000000000000 )
        (     5.32236539000000    -0.89970659500000     0.00000000000000 )
        (     5.80694974000000    -0.99412668000000     0.00000000000000 )
        (     6.34596661000000    -1.09756985000000     0.00000000000000 )
        (     6.94564436000000    -1.21024238000000     0.00000000000000 )
        (     7.61297580000000    -1.33194692000000     0.00000000000000 )
        (     8.35571361000000    -1.46247834000000     0.00000000000000 )
        (     9.18252448000000    -1.60119818000000     0.00000000000000 )
        (    10.10304920000000    -1.74714922000000     0.00000000000000 )
        (    11.12799410000000    -1.89906031000000     0.00000000000000 )
        (    12.26924080000000    -2.05531855000000     0.00000000000000 )
        (    13.53998160000000    -2.21383880000000     0.00000000000000 )
        (    14.95488910000000    -2.37166379000000     0.00000000000000 )
        (    16.53062020000000    -2.52039870000000     0.00000000000000 )
        (    18.28468610000000    -2.65890946000000     0.00000000000000 )
        (    20.23694080000000    -2.78131776000000     0.00000000000000 )
        (    22.40934030000000    -2.87970668000000     0.00000000000000 )
    )
    spline    4    6 (    //   2
        (     1.00000248000000    -0.00313545600000     1.00000000000000 )
        (     1.00000524000000    -0.00313876115000     1.00000000000000 )
        (     1.00000831000000    -0.00314243554000     1.00000000000000 )
        (     1.00001172000000    -0.00314652043000     1.00000000000000 )
        (     1.00001551000000    -0.00315106167000     1.00000000000000 )
        (     1.00001972000000    -0.00315611026000     1.00000000000000 )
        (     1.00002440000000    -0.00316172286000     1.00000000000000 )
        (     1.00002961000000    -0.00316796251000     1.00000000000000 )
        (     1.00003540000000    -0.00317489926000     1.00000000000000 )
        (     1.00004184000000    -0.00318261101000     1.00000000000000 )
        (     1.00004899000000    -0.00319118435000     1.00000000000000 )
        (     1.00005695000000    -0.00320071558000     1.00000000000000 )
        (     1.00006579000000    -0.00321131175000     1.00000000000000 )
        (     1.00007562000000    -0.00322309187000     1.00000000000000 )
        (     1.00008655000000    -0.00323618831000     1.00000000000000 )
        (     1.00009870000000    -0.00325074821000     1.00000000000000 )
        (     1.00011220000000    -0.00326693518000     1.00000000000000 )
        (     1.00012722000000    -0.00328493116000     1.00000000000000 )
        (     1.00014391000000    -0.00330493844000     1.00000000000000 )
        (     1.00016246000000    -0.00332718199000     1.00000000000000 )
        (     1.00018308000000    -0.00335191193000     1.00000000000000 )
        (     1.00020601000000    -0.00337940643000     1.00000000000000 )
        (     1.00023149000000    -0.00340997479000     1.00000000000000 )
        (     1.00025982000000    -0.00344396095000     1.00000000000000 )
        (     1.00029130000000    -0.00348174741000     1.00000000000000 )
        (     1.00032630000000    -0.00352375948000     1.00000000000000 )
        (     1.00036521000000    -0.00357047017000     1.00000000000000 )
        (     1.00040845000000    -0.00362240551000     1.00000000000000 )
        (     1.00045651000000    -0.00368015050000     1.00000000000000 )
        (     1.00050993000000    -0.00374435583000     1.00000000000000 )
        (     1.00056931000000    -0.00381574520000     1.00000000000000 )
        (     1.00063530000000    -0.00389512361000     1.00000000000000 )
        (     1.00070865000000    -0.00398338613000     1.00000000000000 )
        (     1.00079016000000    -0.00408152681000     1.00000000000000 )
        (     1.00088077000000    -0.00419064633000     1.00000000000000 )
        (     1.00098150000000    -0.00431195603000     1.00000000000000 )
        (     1.00109353000000    -0.00444677422000     1.00000000000000 )
        (     1.00121826000000    -0.00459650755000     1.00000000000000 )
        (     1.00135735000000    -0.00476260544000     1.00000000000000 )
        (     1.00151292000000    -0.00494646793000     1.00000000000000 )
        (     1.00168776000000    -0.00514926192000     1.00000000000000 )
        (     1.00188565000000    -0.00537162357000     1.00000000000000 )
        (     1.00211170000000    -0.00561329179000     1.00000000000000 )
        (     1.00237259000000    -0.00587263378000     1.00000000000000 )
        (     1.00267629000000    -0.00614645568000     1.00000000000000 )
        (     1.00303118000000    -0.00643048607000     1.00000000000000 )
        (     1.00344481000000    -0.00672075141000     1.00000000000000 )
        (     1.00392318000000    -0.00701530086000     1.00000000000000 )
        (     1.00447105000000    -0.00731522196000     1.00000000000000 )
        (     1.00509287000000    -0.00762438754000     1.00000000000000 )
        (     1.00579368000000    -0.00794830902000     1.00000000000000 )
        (     1.00657983000000    -0.00829285098000     1.00000000000000 )
        (     1.00745920000000    -0.00866334889000     1.00000000000000 )
        (     1.00844135000000    -0.00906429934000     1.00000000000000 )
        (     1.00953748000000    -0.00949949891000     1.00000000000000 )
        (     1.01076034000000    -0.00997237857000     1.00000000000000 )
        (     1.01212431000000    -0.01048632440000     1.00000000000000 )
        (     1.01364541000000    -0.01104489760000     1.00000000000000 )
        (     1.01534149000000    -0.01165195660000     1.00000000000000 )
        (     1.01723239000000    -0.01231171350000     1.00000000000000 )
        (     1.01934019000000    -0.01302875480000     1.00000000000000 )
        (     1.02168947000000    -0.01380804360000     1.00000000000000 )
        (     1.02430758000000    -0.01465491920000     1.00000000000000 )
        (     1.02722497000000    -0.01557510090000     1.00000000000000 )
        (     1.03047556000000    -0.01657470550000     1.00000000000000 )
        (     1.03409711000000    -0.01766028030000     1.00000000000000 )
        (     1.03813160000000    -0.01883885360000     1.00000000000000 )
        (     1.04262577000000    -0.02011800430000     1.00000000000000 )
        (     1.04763160000000    -0.02150594610000     1.00000000000000 )
        (     1.05320688000000    -0.02301162890000     1.00000000000000 )
        (     1.05941584000000    -0.02464485300000     1.00000000000000 )
        (     1.06632990000000    -0.02641639790000     1.00000000000000 )
        (     1.07402843000000    -0.02833816530000     1.00000000000000 )
        (     1.08259965000000    -0.03042333780000     1.00000000000000 )
        (     1.09214161000000    -0.03268655400000     1.00000000000000 )
        (     1.10276326000000    -0.03514410440000     1.00000000000000 )
        (     1.11458570000000    -0.03781414950000     1.00000000000000 )
        (     1.12774353000000    -0.04071696430000     1.00000000000000 )
        (     1.14238631000000    -0.04387521330000     1.00000000000000 )
        (     1.15868040000000    -0.04731373110000     1.00000000000000 )
        (     1.17681069000000    -0.05106024610000     1.00000000000000 )
        (     1.19698229000000    -0.05514776080000     1.00000000000000 )
        (     1.21942339000000    -0.05961204080000     1.00000000000000 )
        (     1.24438765000000    -0.06449324310000     1.00000000000000 )
        (     1.27215695000000    -0.06983647800000     1.00000000000000 )
        (     1.30304460000000    -0.07569243970000     1.00000000000000 )
        (     1.33739879000000    -0.08211810960000     1.00000000000000 )
        (     1.37560650000000    -0.08917754020000     1.00000000000000 )
        (     1.41809784000000    -0.09694272310000     1.00000000000000 )
        (     1.46535083000000    -0.10549454800000     1.00000000000000 )
        (     1.51789675000000    -0.11492386100000     1.00000000000000 )
        (     1.57632608000000    -0.12533261600000     1.00000000000000 )
        (     1.64129514000000    -0.13683514200000     1.00000000000000 )
        (     1.71353341000000    -0.14955950900000     1.00000000000000 )
        (     1.79385172000000    -0.16364901200000     1.00000000000000 )
        (     1.88315137000000    -0.17926375800000     1.00000000000000 )
        (     1.98243426000000    -0.19658236700000     1.00000000000000 )
        (     2.09281415000000    -0.21580376600000     1.00000000000000 )
        (     2.21552927000000    -0.23714906600000     1.00000000000000 )
        (     2.35195625000000    -0.26086349300000     1.00000000000000 )
        (     2.50362578000000    -0.28721832800000     1.00000000000000 )
        (     2.67223994000000    -0.31651278000000     1.00000000000000 )
        (     2.85969165000000    -0.34907568700000     1.00000000000000 )
        (     3.06808626000000    -0.38526685200000     1.00000000000000 )
        (     3.29976583000000    -0.42547776500000     1.00000000000000 )
        (     3.55733620000000    -0.47013126600000     1.00000000000000 )
        (     3.84369740000000    -0.51967949500000     1.00000000000000 )
        (     4.16207788000000    -0.57459910300000     1.00000000000000 )
        (     4.51607318000000    -0.63538212100000     1.00000000000000 )
        (     4.90968966000000    -0.70252034600000     1.00000000000000 )
        (     5.34739424000000    -0.77648088300000     1.00000000000000 )
        (     5.83417048000000    -0.85767123500000     1.00000000000000 )
        (     6.37558130000000    -0.94639449700000     1.00000000000000 )
        (     6.97783778000000    -1.04279872000000     1.00000000000000 )
        (     7.64793783000000    -1.14639959000000     1.00000000000000 )
        (     8.39360835000000    -1.25687543000000     1.00000000000000 )
        (     9.22348632000000    -1.37340232000000     1.00000000000000 )
        (    10.14717460000000    -1.49481308000000     1.00000000000000 )
        (    11.17533260000000    -1.61960907000000     1.00000000000000 )
        (    12.31978320000000    -1.74594896000000     1.00000000000000 )
        (    13.59364260000000    -1.87155028000000     1.00000000000000 )
        (    15.01147420000000    -1.99339571000000     1.00000000000000 )
        (    16.58962950000000    -2.10423257000000     1.00000000000000 )
        (    18.34570760000000    -2.20131391000000     1.00000000000000 )
        (    20.29933830000000    -2.28036994000000     1.00000000000000 )
        (    22.47232760000000    -2.33445395000000     1.00000000000000 )
    )
    spline    5    7 (    //   3
        (     0.99928872000000    -0.00300717937000     1.00000000000000 )
        (     0.99928795000000    -0.00301141515000     1.00000000000000 )
        (     0.99928709500000    -0.00301612414000     1.00000000000000 )
        (     0.99928614600000    -0.00302135970000     1.00000000000000 )
        (     0.99928509400000    -0.00302718063000     1.00000000000000 )
        (     0.99928392800000    -0.00303365253000     1.00000000000000 )
        (     0.99928263600000    -0.00304084836000     1.00000000000000 )
        (     0.99928120800000    -0.00304884936000     1.00000000000000 )
        (     0.99927962900000    -0.00305774593000     1.00000000000000 )
        (     0.99927788700000    -0.00306763873000     1.00000000000000 )
        (     0.99927596900000    -0.00307863988000     1.00000000000000 )
        (     0.99927386000000    -0.00309087428000     1.00000000000000 )
        (     0.99927154800000    -0.00310448112000     1.00000000000000 )
        (     0.99926902200000    -0.00311961540000     1.00000000000000 )
        (     0.99926627000000    -0.00313644997000     1.00000000000000 )
        (     0.99926328700000    -0.00315517750000     1.00000000000000 )
        (     0.99926007000000    -0.00317601280000     1.00000000000000 )
        (     0.99925662300000    -0.00319919540000     1.00000000000000 )
        (     0.99925295900000    -0.00322499235000     1.00000000000000 )
        (     0.99924909900000    -0.00325370091000     1.00000000000000 )
        (     0.99924508000000    -0.00328565216000     1.00000000000000 )
        (     0.99924095600000    -0.00332121439000     1.00000000000000 )
        (     0.99923679900000    -0.00336079688000     1.00000000000000 )
        (     0.99923270800000    -0.00340485387000     1.00000000000000 )
        (     0.99922881200000    -0.00345388876000     1.00000000000000 )
        (     0.99922527000000    -0.00350845861000     1.00000000000000 )
        (     0.99922228300000    -0.00356917887000     1.00000000000000 )
        (     0.99922009500000    -0.00363672858000     1.00000000000000 )
        (     0.99921899600000    -0.00371185585000     1.00000000000000 )
        (     0.99921933400000    -0.00379538412000     1.00000000000000 )
        (     0.99922151400000    -0.00388821886000     1.00000000000000 )
        (     0.99922600900000    -0.00399135530000     1.00000000000000 )
        (     0.99923336200000    -0.00410588687000     1.00000000000000 )
        (     0.99924419900000    -0.00423301489000     1.00000000000000 )
        (     0.99925923000000    -0.00437405969000     1.00000000000000 )
        (     0.99927925400000    -0.00453047386000     1.00000000000000 )
        (     0.99930515700000    -0.00470385841000     1.00000000000000 )
        (     0.99933792200000    -0.00489598007000     1.00000000000000 )
        (     0.99937868500000    -0.00510878184000     1.00000000000000 )
        (     0.99942890600000    -0.00534436681000     1.00000000000000 )
        (     0.99949087900000    -0.00560488694000     1.00000000000000 )
        (     0.99956882900000    -0.00589219552000     1.00000000000000 )
        (     0.99966924600000    -0.00620749710000     1.00000000000000 )
        (     0.99980295800000    -0.00655008075000     1.00000000000000 )
        (     0.99998505600000    -0.00691587386000     1.00000000000000 )
        (     1.00023254000000    -0.00729648878000     1.00000000000000 )
        (     1.00055958000000    -0.00768077488000     1.00000000000000 )
        (     1.00097390000000    -0.00805917202000     1.00000000000000 )
        (     1.00147770000000    -0.00842753797000     1.00000000000000 )
        (     1.00207112000000    -0.00878766397000     1.00000000000000 )
        (     1.00275505000000    -0.00914565541000     1.00000000000000 )
        (     1.00353211000000    -0.00951033742000     1.00000000000000 )
        (     1.00440675000000    -0.00989224772000     1.00000000000000 )
        (     1.00538516000000    -0.01030276270000     1.00000000000000 )
        (     1.00647546000000    -0.01075298800000     1.00000000000000 )
        (     1.00768795000000    -0.01125258460000     1.00000000000000 )
        (     1.00903545000000    -0.01180906240000     1.00000000000000 )
        (     1.01053343000000    -0.01242787730000     1.00000000000000 )
        (     1.01219987000000    -0.01311314540000     1.00000000000000 )
        (     1.01405513000000    -0.01386849790000     1.00000000000000 )
        (     1.01612190000000    -0.01469773010000     1.00000000000000 )
        (     1.01842531000000    -0.01560515970000     1.00000000000000 )
        (     1.02099315000000    -0.01659577240000     1.00000000000000 )
        (     1.02385619000000    -0.01767525530000     1.00000000000000 )
        (     1.02704852000000    -0.01884999160000     1.00000000000000 )
        (     1.03060800000000    -0.02012705760000     1.00000000000000 )
        (     1.03457668000000    -0.02151423930000     1.00000000000000 )
        (     1.03900127000000    -0.02302007550000     1.00000000000000 )
        (     1.04393367000000    -0.02465392750000     1.00000000000000 )
        (     1.04943158000000    -0.02642607360000     1.00000000000000 )
        (     1.05555909000000    -0.02834782490000     1.00000000000000 )
        (     1.06238744000000    -0.03043166170000     1.00000000000000 )
        (     1.06999579000000    -0.03269138840000     1.00000000000000 )
        (     1.07847210000000    -0.03514230850000     1.00000000000000 )
        (     1.08791410000000    -0.03780142020000     1.00000000000000 )
        (     1.09843040000000    -0.04068763510000     1.00000000000000 )
        (     1.11014172000000    -0.04382202420000     1.00000000000000 )
        (     1.12318217000000    -0.04722809370000     1.00000000000000 )
        (     1.13770082000000    -0.05093209610000     1.00000000000000 )
        (     1.15386331000000    -0.05496338190000     1.00000000000000 )
        (     1.17185373000000    -0.05935479600000     1.00000000000000 )
        (     1.19187667000000    -0.06414312640000     1.00000000000000 )
        (     1.21415950000000    -0.06936961080000     1.00000000000000 )
        (     1.23895487000000    -0.07508050720000     1.00000000000000 )
        (     1.26654360000000    -0.08132773600000     1.00000000000000 )
        (     1.29723774000000    -0.08816960080000     1.00000000000000 )
        (     1.33138408000000    -0.09567159330000     1.00000000000000 )
        (     1.36936803000000    -0.10390729100000     1.00000000000000 )
        (     1.41161789000000    -0.11295935500000     1.00000000000000 )
        (     1.45860964000000    -0.12292062900000     1.00000000000000 )
        (     1.51087226000000    -0.13389536000000     1.00000000000000 )
        (     1.56899364000000    -0.14600052800000     1.00000000000000 )
        (     1.63362715000000    -0.15936730400000     1.00000000000000 )
        (     1.70549897000000    -0.17414264500000     1.00000000000000 )
        (     1.78541619000000    -0.19049101000000     1.00000000000000 )
        (     1.87427594000000    -0.20859623300000     1.00000000000000 )
        (     1.97307539000000    -0.22866351600000     1.00000000000000 )
        (     2.08292304000000    -0.25092156800000     1.00000000000000 )
        (     2.20505119000000    -0.27562486700000     1.00000000000000 )
        (     2.34082990000000    -0.30305601500000     1.00000000000000 )
        (     2.49178250000000    -0.33352816900000     1.00000000000000 )
        (     2.65960291000000    -0.36738745500000     1.00000000000000 )
        (     2.84617500000000    -0.40501528200000     1.00000000000000 )
        (     3.05359414000000    -0.44683037200000     1.00000000000000 )
        (     3.28419144000000    -0.49329022900000     1.00000000000000 )
        (     3.54056080000000    -0.54489162400000     1.00000000000000 )
        (     3.82558940000000    -0.60216940100000     1.00000000000000 )
        (     4.14249209000000    -0.66569249500000     1.00000000000000 )
        (     4.49485035000000    -0.73605547000000     1.00000000000000 )
        (     4.88665672000000    -0.81386325400000     1.00000000000000 )
        (     5.32236539000000    -0.89970659500000     1.00000000000000 )
        (     5.80694974000000    -0.99412668000000     1.00000000000000 )
        (     6.34596661000000    -1.09756985000000     1.00000000000000 )
        (     6.94564436000000    -1.21024238000000     1.00000000000000 )
        (     7.61297580000000    -1.33194692000000     1.00000000000000 )
        (     8.35571361000000    -1.46247834000000     1.00000000000000 )
        (     9.18252448000000    -1.60119818000000     1.00000000000000 )
        (    10.10304920000000    -1.74714922000000     1.00000000000000 )
        (    11.12799410000000    -1.89906031000000     1.00000000000000 )
        (    12.26924080000000    -2.05531855000000     1.00000000000000 )
        (    13.53998160000000    -2.21383880000000     1.00000000000000 )
        (    14.95488910000000    -2.37166379000000     1.00000000000000 )
        (    16.53062020000000    -2.52039870000000     1.00000000000000 )
        (    18.28468610000000    -2.65890946000000     1.00000000000000 )
        (    20.23694080000000    -2.78131776000000     1.00000000000000 )
        (    22.40934030000000    -2.87970668000000     1.00000000000000 )
    )
);

patches
(
    wall AIRFOIL
    (
         (      0      1    5    4 ) //      0
    )
    patch FARFIELD
    (
         (    2    3    7    6 ) //      0
    )
    empty FRONT
    (
         (      0    2    3      1 ) //      0
    )
    empty BACK
    (
         (    4    5    7    6 ) //      0
    )
);

mergePatchPairs
(
);
blockMeshDict (40,046 bytes)

henry

2019-09-17 09:53

manager   ~0010742

Do you have a proposal to improve the check? If not it could either be put on a switch or the error could be made a warning.

hk318i

2019-09-17 10:26

reporter   ~0010744

Thanks for the prompt response. I think this check itself is important but it is only fatal in case of blocks without curved edges. But in case of ``nCurvedFaces_ >0``, a warning would be enough. Then even if the face orientations are wrong for such case, post meshing checks will catch that definitely without giving the user a false error.

henry

2019-09-17 11:20

manager   ~0010746

The face orientation check is performed on the block before the curves are applied so the test should be correct irrespective of the curvature of the faces.
If you run blockMesh on your blockMeshDict without the edges defined you will see the same message:

--> FOAM FATAL IO ERROR:
Block hex (1 3 2 0 5 7 6 4) (127 1 1) simpleGrading (1(641295) 1(1) 1(1)) has inward-pointing faces
    4(1 5 4 0)

hk318i

2019-09-17 14:31

reporter   ~0010747

I see, this check is too early and doing such check will not be reliable at this point. Maybe it could be wrapped under a debug switch. There is warring anyway by ``cellModel`` because this block isn't valid geometrically as cell.

henry

2019-09-17 15:48

manager   ~0010748

I believe the check is correct and that there is an error in your blockMeshDict. If I change it to remove the duplicate vertices it works fine and does not fail at the check. Alternatively you could correct the block definition with the duplicate vertices if you want to keep them.

hk318i

2019-09-17 16:14

reporter   ~0010749

Sorry, I didn't get what you mean by duplicate vertices. Despite the extreme curvature, this block could be meshed as it is in OpenFOAM-4.0 and check mesh does not report any negative volumes nor faces.

henry

2019-09-17 16:19

manager   ~0010750

Duplicate vertices are vertices at the same location, there are 2 duplicate pairs in your blockMeshDict. Your blockMeshDict is incorrect but because of the duplicate vertices the resulting incorrect face is removed because it is collapsed and hence the resulting mesh does not contain an error.

hk318i

2019-09-17 17:06

reporter   ~0010751

I double-checked and printed out the vertices

vertices
8((1 -0.003132483 0) (0.999289412 -0.00300336924 0) (24.8887426 -2.35594792 0) (24.826088 -2.94369738 0)
   (1 -0.003132483 1) (0.999289412 -0.00300336924 1) (24.8887426 -2.35594792 1) (24.826088 -2.94369738 1))

which matches ``blockMeshDict``. The vertices have same x and y but they are shifted in z. Also, I printed out centre of face0 and the checks

face[0] ##########
faceCentre: (0.999644706 -0.00306792612 0.5)
blockCentre: (16.905245230892 -1.7676191710444 0.5)
faceArea: (0.00012911376 0.00071058800000001 3.3087224502121e-24)
(faceCentre - blockCentre): (-15.905600524892 1.7645512449244 -1.1102230246252e-16)
((faceCentre - blockCentre) & faceArea): -0.00079976294879844

For me it seems that the ``faceArea`` for this face is correct and the ``faceCentre`` as well (face0 is small flat surface) but because of the ``blockCentre``, the projection has a negative sign.

henry

2019-09-17 17:36

manager   ~0010752

You are right it is a geometric orientation problem rather than a topological problem, points 0 and 1 and 4 and 5 are very close and the orientation of the face they define is not good, the non-orthogonality is >90deg causing the error. Can you avoid the extreme non-orthogonality of the block? If not you will need to remove this check.

hk318i

2019-09-18 07:59

reporter   ~0010754

We are trying to reduce the non-orthogonality but I don't think it will pass this check. Such block is common for geometrically structured meshes around airfoils. The is example block connects the trailing edge of the lower surface of an airfoil to the far field patch (O-mesh). The mesh is generated by this open source tool
https://gitlab.cc-asp.fraunhofer.de/iwes-cfsd-public/wtrb-aerodynamics/c2d-ext

Removing the check is fine for me but I think this check at this point limits ``blockMesh``. Also, I couldn't find a clean way to disable this check without changing ``blockDescriptor`` class. There is no much room for clean extension from my side.

henry

2019-09-18 08:25

manager   ~0010755

Most users find this block check very useful and would rather it were not removed permanently, also we have not received any other reports of problems with it.
The block in your example case is rather extreme and I cannot think of a change to the check which would allow such a block to pass the check so it would have to be disabled for these extreme cases.
This could be done via the debug switches in controlDict or a local switch in blockMeshDict.

henry

2019-09-18 08:38

manager   ~0010756

It may be possible to make the check more robust by using the face centres of the other faces rather than the block centre, I will have a go later today.

henry

2019-09-18 11:19

manager   ~0010759

Try this:

commit 471810313636980d142a995369815aa9d5db5dd8 (HEAD -> master, origin/master, origin/HEAD)
Author: Henry Weller <http://openfoam.org>
Date: Wed Sep 18 11:16:41 2019 +0100

    blockMesh: Improved block face orientation check and added an optional switch

            //- Switch checking block face orientation
            // to ensure that all faces are outward-pointing.
            // This check may fail if the block is intentionally very twisted
            // for curved edges to be applied and can be switched off.
            static Switch checkBlockFaceOrientation;

    To switch this check off set

    checkBlockFaceOrientation false;

    in blockMeshDict.

hk318i

2019-09-18 12:33

reporter   ~0010760

Thank you very much. I tested it on the complete mesh as well, it works fine with the switch. I tried also without the switch but it didn't work. It is extreme case anyway, however having the option to procure is definitely very helpful.

henry

2019-09-18 14:16

manager   ~0010763

Resolved by commit 471810313636980d142a995369815aa9d5db5dd8

Issue History

Date Modified Username Field Change
2019-09-17 09:39 hk318i New Issue
2019-09-17 09:39 hk318i File Added: centres.png
2019-09-17 09:39 hk318i File Added: blockMeshDict
2019-09-17 09:53 henry Note Added: 0010742
2019-09-17 10:26 hk318i Note Added: 0010744
2019-09-17 11:20 henry Note Added: 0010746
2019-09-17 14:31 hk318i Note Added: 0010747
2019-09-17 15:48 henry Note Added: 0010748
2019-09-17 16:14 hk318i Note Added: 0010749
2019-09-17 16:19 henry Note Added: 0010750
2019-09-17 17:06 hk318i Note Added: 0010751
2019-09-17 17:36 henry Note Added: 0010752
2019-09-18 07:59 hk318i Note Added: 0010754
2019-09-18 08:25 henry Note Added: 0010755
2019-09-18 08:38 henry Note Added: 0010756
2019-09-18 11:19 henry Note Added: 0010759
2019-09-18 12:33 hk318i Note Added: 0010760
2019-09-18 14:16 henry Assigned To => henry
2019-09-18 14:16 henry Status new => resolved
2019-09-18 14:16 henry Resolution open => fixed
2019-09-18 14:16 henry Fixed in Version => dev
2019-09-18 14:16 henry Note Added: 0010763
