Summary0002836: compressibleInterDyMFoam, Mesh Morphing issues
DescriptionRelated to the previous case https://bugs.openfoam.org/view.php?id=2824, which has been solved, I see still some wrong behavior using the mesh morpher in compressibleInterDyMFoam (dev-version 20180205). First of all, thanks Henry for taking time and looking at it. Really apreciate that.
Using the mesh morpher with this settings in dynamicMeshDict:
velocityComponentLaplacianCoeffs
{
    component x;
    diffusivity inverseDistance (fixedArc);
}

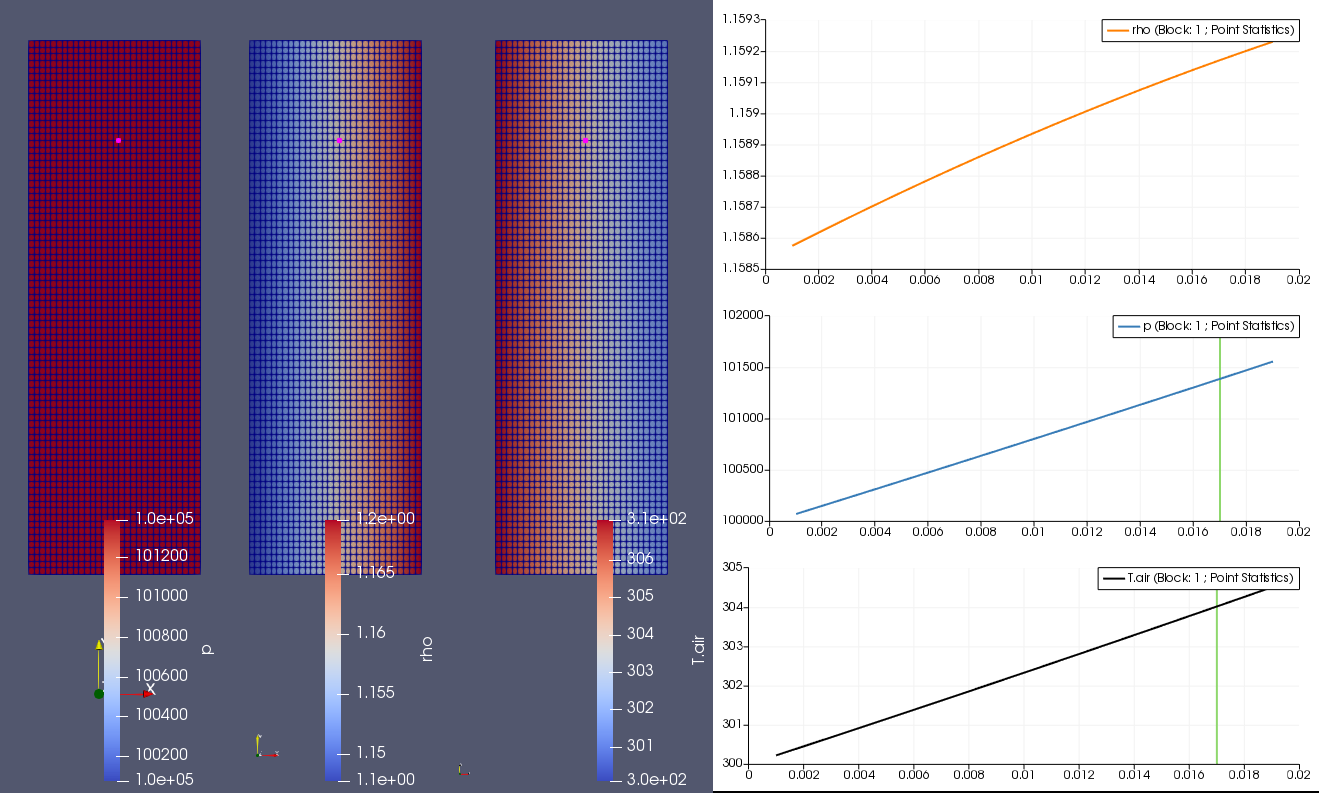

produces an unphysical density/temperature-distribution along x-axis(see attachement: compressibleInterDyMFoamMeshMorphingV01).
Using another setting by just defining the directional diffusivity:
solver velocityComponentLaplacian;
component x;
diffusivity directional (1 0 0);

spatial distribution of density, temperature and pressure looks physically reasonable but in the time evolution density does not change, hence is not corrected.

Can someone help me with a simple working example, where a box is compressed using the compressibleInterDyMFoam. This would be really helpfull.
I might have specified wrong bc's for the moving wall or the dynamicMesh settings are wrong. I do really not have any clou, where to search/look from my user-settings perspective. I also do not know, whether I have to activate correctPhi.
Steps To ReproduceThe here discribed behavior can be reproduced by using the case from the last bug-report: https://bugs.openfoam.org/view.php?id=2824.
TagscompressibleInterDyMFoam, meshMorpher
Attached Files

-Relationships
+Relationships

-Notes

~0009304

henry (manager)

I am running the case with pure air and the settings

solver velocityComponentLaplacian;
component x;
diffusivity directional (1 0 0);

and the density is uniform (apart from one corner cell) and increases as expected.
Are you running with the correcties provided to compressibleInterDyMFoam?

~0009305

henry (manager)

With

    diffusivity inverseDistance (fixedArc);

I get uniform pressure, density and temperature fields except in one corner cell.

~0009307

arohner (reporter)

Hi Henry,
Thank you for your comment. I assumed the changes were already included in the update from 05022018, but I was wrong as I found out by checking the files. I included the correcties and everything works fine. Thank you for your work an time. I think this case can be closed.
+Notes

-Issue History
Date Modified Username Field Change
2018-02-08 12:32 arohner New Issue
2018-02-08 12:32 arohner File Added: compressibleInterDyMFoamMeshMorphingV01.png
2018-02-08 12:32 arohner Tag Attached: compressibleInterDyMFoam
2018-02-08 12:32 arohner Tag Attached: meshMorpher
2018-02-12 15:38 henry Note Added: 0009304
2018-02-12 15:44 henry Note Added: 0009305
2018-02-12 21:59 arohner Note Added: 0009307
2018-02-12 22:19 henry Assigned To => henry
2018-02-12 22:19 henry Status new => closed
2018-02-12 22:19 henry Resolution open => no change required
