Summary | 0001976: Reconstruction of a mesh with sliding cyclicAMI patches breaks the mesh | ||||

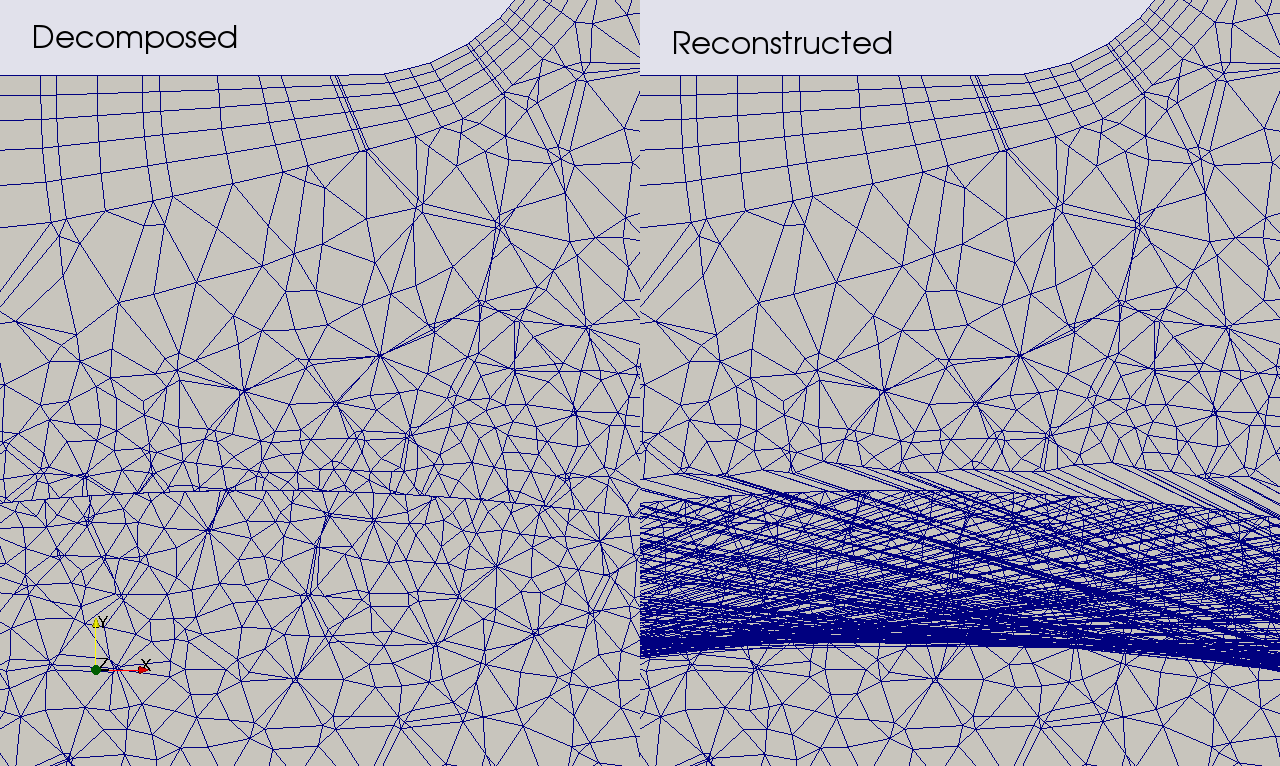

Description | Reconstruction of a mesh with sliding cyclicAMI patches breaks the mesh, see attached figure. The solver that was used is pimpleDyMFoam with a solidBodyMotionFvMesh dynamicFvMesh using rotatingMotion. The simulation ran without any problems. The relevent section from the boundary file: AMI_uitlaat { type cyclicAMI; inGroups 1(cyclicAMI); nFaces 63084; startFace 13287681; matchTolerance 0.0001; transform noOrdering; neighbourPatch AMI_uitlaat_shadow; } AMI_uitlaat_shadow { type cyclicAMI; inGroups 1(cyclicAMI); nFaces 63084; startFace 13350765; matchTolerance 0.0001; transform noOrdering; neighbourPatch AMI_uitlaat; } | ||||
Steps To Reproduce | Reconstruct parallel mesh with sliding cyclicAMI patches. View in ParaView. | ||||
Additional Information | For the simulation OpenFOAM version 3.0.x was used (build 3.0.x-f5fbd395e495). For the reconstruction different versions were tried (2.4.x, 3.0.x and dev) but they all created the same mesh. V2.4.x did return a lot of these warnings that were not present in the output of the other two versions: --> FOAM Warning : From function void Foam::faceAreaWeightAMI<SourcePatch, TargetPatch>::interArea(const label, const label) const in file lnInclude/faceAreaWeightAMI.C at line 359 Invalid normal for source face 5903 points 3((0.0248276 -0.16843 0.437) (0.132566 -0.121466 0.437) (0.014873 -0.170696 0.437)) target face 5823 points 3((0.0113854 -0.180326 0.437) (0.136461 -0.131661 0.437) (0.132566 -0.121466 0.437 ANSA was used to create the mesh | ||||
Tags | No tags attached. | ||||
|
|
|
Have you run checkMesh -allTopology -allGeometry in parallel? Also postprocess the individual domains (eg 'paraFoam -case processor0') |
|
A workaround has been provided. A more elegant solution could appear in a future development. |
