Summary0002953: externalWallHeatFluxTemperature causes wrong results if emissivity is not zero
DescriptionHi,

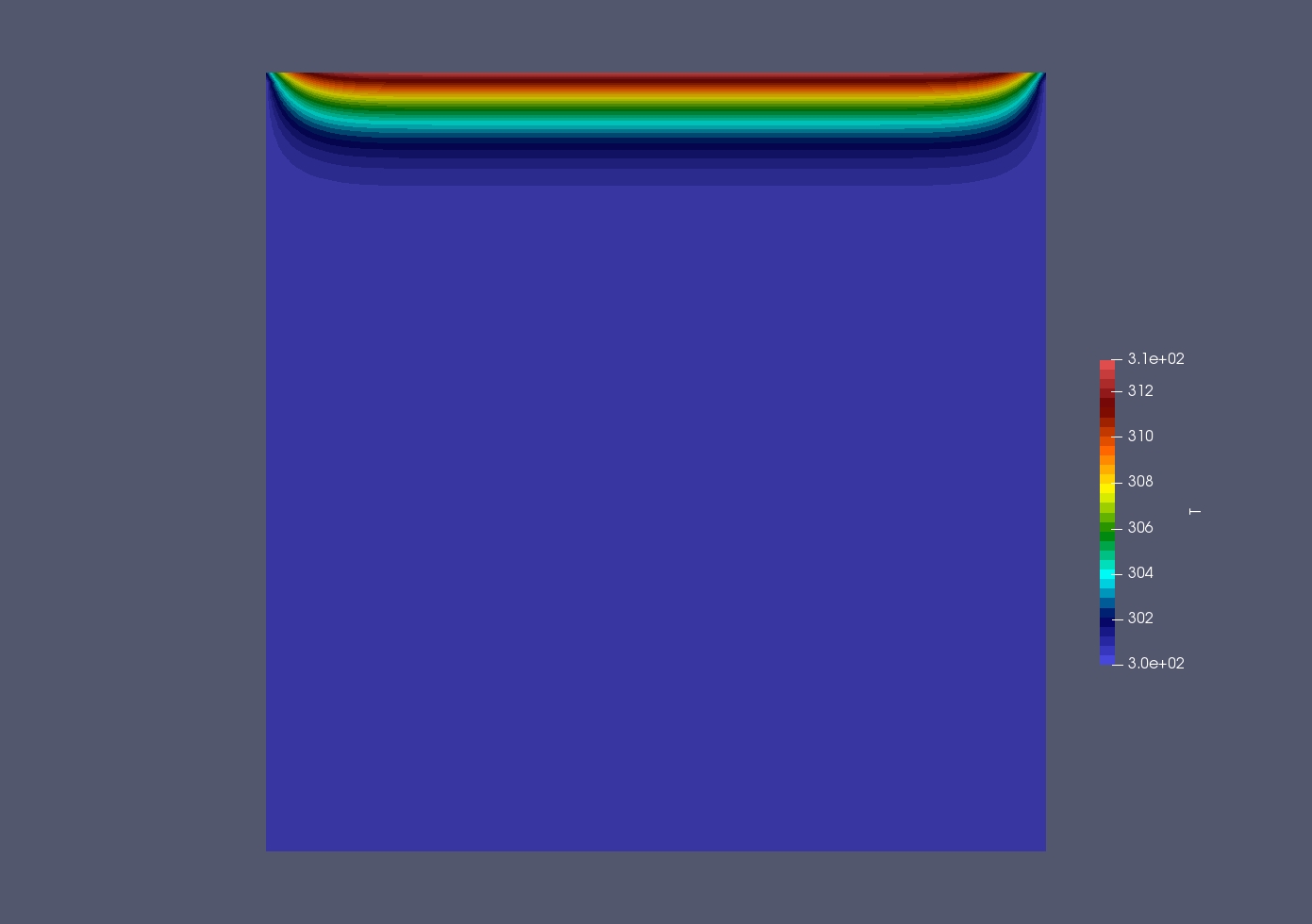

I'm using chtMultiRegionFoam for calculating the thermal conduction in the solids. At one boundary I use the externalWallHeatFluxTemperature condition by using the coefficient mode. The heat transfer coefficient is set to 7 W/m².K and the emissivity is set to 0.3. If Ta=300 and the temperature of the solid is 300 K as well, no heat flux should be expected. But when emissivity > 0 there is noticed a heat flux (as seen in figure1).
Steps To Reproducein file 0/solid2/T

    wall1
    {
        type externalWallHeatFluxTemperature;
        value uniform 300;
        mode coefficient;
        Ta constant 300;
        h uniform 7;
        kappaMethod solidThermo;
        emissivity 0.3;
    }
TagsNo tags attached.

Activities

HTauber

2018-05-23 09:05

reporter


henry

2018-05-23 09:16

manager   ~0009630

Steps to reproduce?

HTauber

2018-05-23 09:28

reporter   ~0009631

Which further information do you need ?

henry

2018-05-23 09:38

manager   ~0009632

I only see an image attached and the instructions to

in file 0/solid2/T

    wall1
    {
        type externalWallHeatFluxTemperature;
        value uniform 300;
        mode coefficient;
        Ta constant 300;
        h uniform 7;
        kappaMethod solidThermo;
        emissivity 0.3;
    }

but I don't have the file 0/solid2/T or any other file of the case. Is this a tutorial case? If so which one? If not is the case available somewhere?

HTauber

2018-05-23 10:13

reporter   ~0009633

Enclosed you will find the case.
externalWall.tar.gz (3,751 bytes)

henry

2018-05-23 14:16

manager   ~0009634

This should be resolved by commit 6c560795cb3a1860d1800ddc3c3b43ad6688b82d
