Summary0001815: Unable to run solidBodyMotionFvMesh with more than 3 cyclicAMI patch pairs
DescriptionRunning sonicDyMFoam (or any other *DyMFoam solver) with 4 cyclicAMI patch pairs causes the following error :

Selecting dynamicFvMesh solidBodyMotionFvMesh
Selecting solid-body motion function rotatingMotion
Applying solid body motion to cellZone fluid2


--> FOAM FATAL ERROR:
More than 6 unsigned transforms detected:
6(((0 0 0) (0.866025 -0.5 0 0.5 0.866025 0 0 0 1) 1) ((0 0 0) (0.866025 0.5 0 -0.5 0.866025 0 0 0 1) 1) ((0 0 0) (0.927184 -0.374607 0 0.374607 0.927184 0 0 0 1) 1) ((0 0 0) (0.927184 0.374607 0 -0.374607 0.927184 0 0 0 1) 1) ((0 0 0) (0.939693 -0.34202 0 0.34202 0.939693 0 0 0 1) 1) ((0 0 0) (0.939693 0.34202 0 -0.34202 0.939693 0 0 0 1) 1))

    From function void Foam::globalIndexAndTransform::determineTransforms()
    in file primitives/globalIndexAndTransform/globalIndexAndTransform.C at line 227.

FOAM exiting
Steps To Reproduceunzip case.zip
sonicDyMFoam
Additional Informationset one of the cyclicAMI patch pair to wall and it works fine !
TagsNo tags attached.

Activities

gdtech

2015-08-06 12:21

reporter

case.zip (147,364 bytes)

MattijsJ

2016-07-22 14:21

reporter


MattijsJ

2016-07-22 14:24

reporter   ~0006554

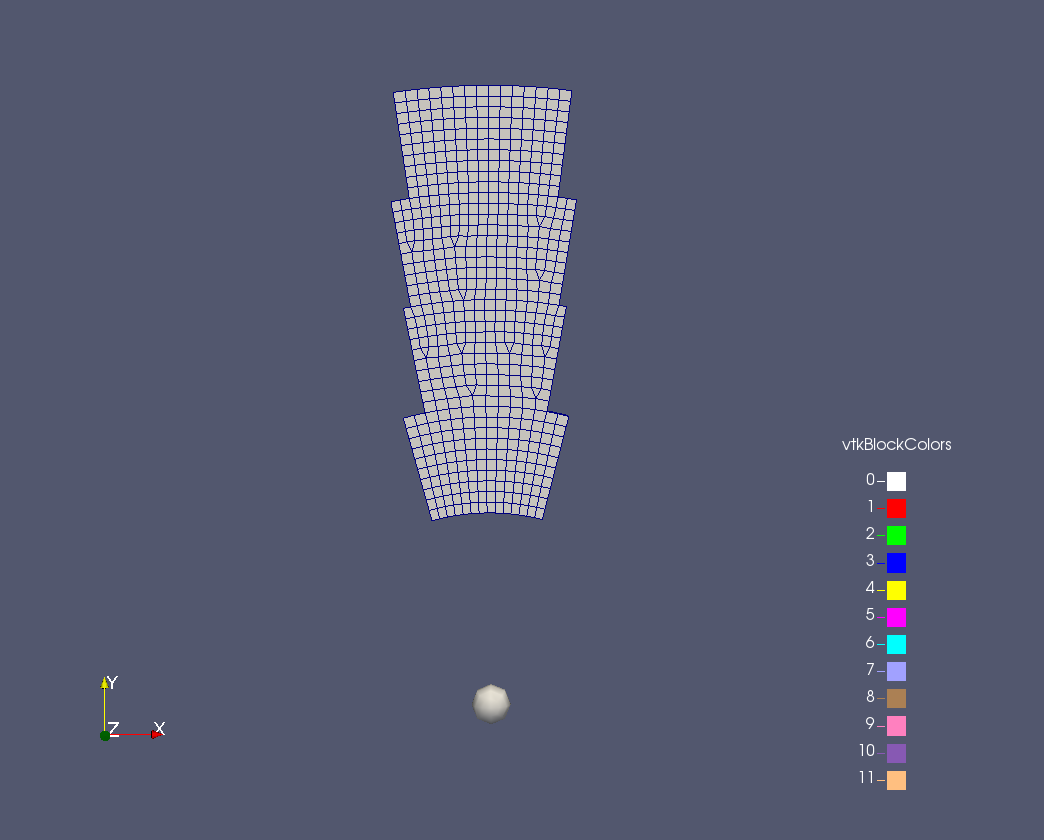

I've plotted the geometry and the rotationAxis (where the sphere is - axis is in z direction). I cannot fill space by rotating your geometry. How did you get at these cyclic cuts? What are you trying to simulate?

gdtech

2016-07-22 14:35

reporter   ~0006555

This is a simplified representation of a radial compressor/turbine (without the blades). There are 4 stages connected with mixingPlane BCs (not included in this simplified model) with a cyclic patch pair for each stage.

MattijsJ

2016-07-22 15:24

reporter   ~0006556

There is currently a constraint on 3 independent transforms per point which has led to the overall limit of 6. In your case of course that doesn't happen. Maybe you can run your simulation as a multi-region simulation (since the mixing plane is explicit anyway).

MattijsJ

2016-07-26 20:07

reporter   ~0006576

I've pushed some experimental code to a (recentish) fork:

git clone -b feature-GAMG git@github.com:mattijsjanssens/OpenFOAM-dev.git

It allows any number of transforms as long as no point uses more than 3. Can you test this on your case, including parallel, reconstruction etc and maybe also some other cases with transformations.

MattijsJ

2016-09-04 20:40

reporter

globalIndexAndTransform.patch (61,568 bytes)
